TrueVIS SG Big Business Performance Small Business Price

All the color, performance and reliability you need to
build a successful graphics business.
SG2-640/SG2-540 - 2020 Pick BLI Outing Entry Level

NEW TrueVIS SG2-640, SG2-540, SG2-300 Printer/Cutter Machines

  • MSRP

    SG2-300:
    $12,995 US*

    SG2-540:
    $14,995 US*

    SG2-640:
    $18,995 US*

    * U.S. only. For Canada, Latin America and Caribbean pricing, please contact an Authorized Roland DGA Dealer in your area. Price does not include optional take-up unit.

  • LEASE PRICE

    SG2-300:
    $260 US **

    SG2-540:
    $300 US*

    SG2-640:
    $380 US **

    ** For 60 months, OAC

    Financial Services

New generation TrueVIS SG2 series large format printer/cutters provide the superior color and cutting features you expect to find in a top-of-the-line machine, but without the higher price tag.

  • Featuring new TR2 ink for a wider color gamut with brilliantly vivid print output at a very low ink cost per sq/ft
  • Offering smart new print/cut features that include automated pinch rollers
  • 3M™ MCS™ Warranty and Avery Dennison™ ICS™ Warranty Program certified for added print confidence

Request a Sample

Choose SG2-300 Printer/Cutter for
On-Demand Graphics Customization

Need a device that can produce a wide variety of premium, on-demand graphics from your home, office or workshop? Get a head start in graphics customization with a simple-to-operate and easily affordable printer/cutter that was built to build your business. Swap-out your desktop devices for the 30” SG2-300 printer/cutter that offers so many more customization opportunities.

Choose SG2-640 or SG2-540 Printer/Cutters for
Large Format Applications

Looking for the latest Roland DG inkjet technology to take your graphics to the next level? Expand your sign, vehicle graphics, commercial print or other customization business with a cost-effective and reliable printer/cutter that provides premium graphics output. Available in 64” and 54” models, here are just some of the profitable large format applications of the SG2-640 and SG2-540.

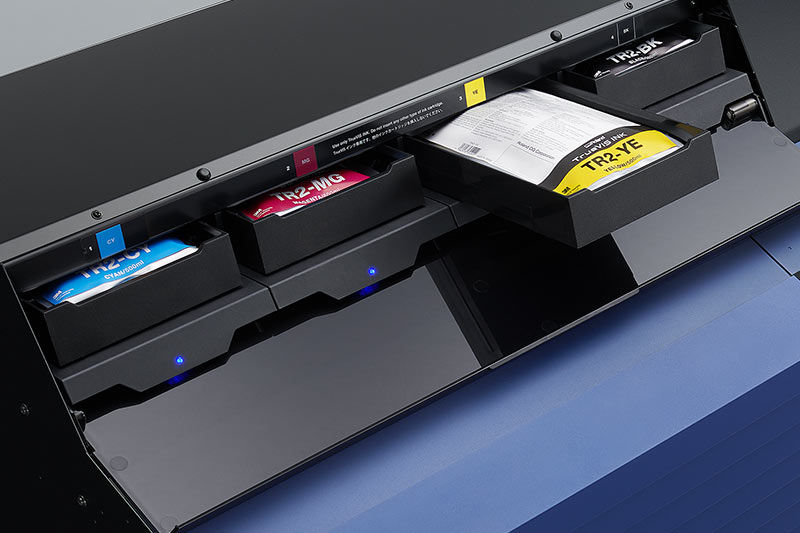

SG2 Series Inks

New Ink Certifications for
Added Print Assurance

Two of the world’s leading material providers, 3M and Avery Dennison offer warranty coverage for graphics printed with SG2 printer/cutters and TR2 ink.


3M MCS Warranty

The combination of SG2 and new TR2* ink is certified for long-lasting results under the 3M™ MCS™ Warranty— offering quality assured graphics for you and your customers.

*The 3M™ MCS™ Warranty covers printing onto 3M products with standard TR2 inks.

Learn More About
3M™ MCS™ Warranty


Avery Dennison ICS Warranty

The SG2 with new TR2** ink has Avery Dennison ICS Performance Guarantee certification— with warranty coverage for six-hour outgassing times that enables same day print, lamination and wrapping.

**The Avery Dennison™ ICS Performance Guarantee covers printing onto Avery Dennison products with standard TR2 inks.

Learn More About
Avery ICS Performance Guarantee

The Brilliant Cost and Color Benefits
of New TR2 Ink and True Rich Color

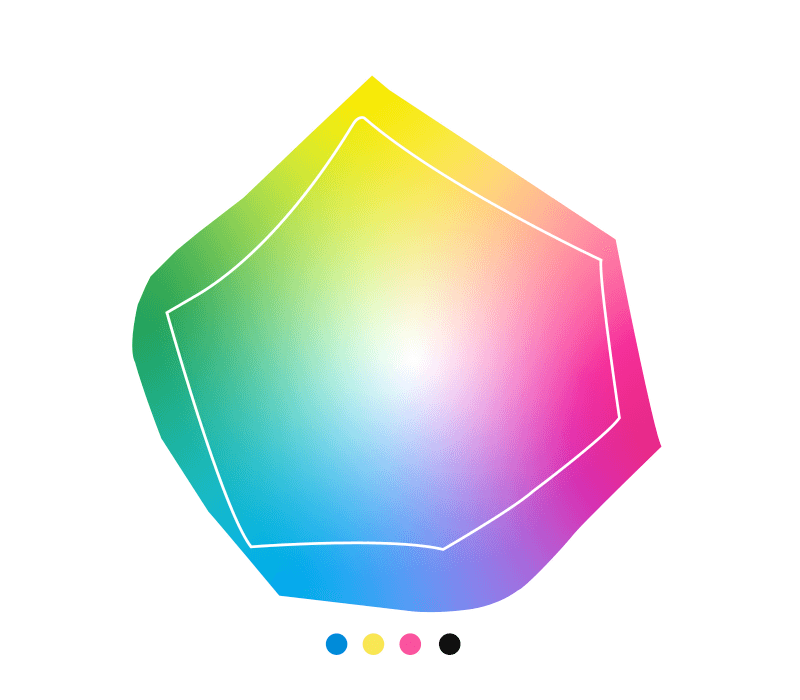

Elevate all your print output and improve color reproduction of specific colors with TR2 inks in CMYK configuration that produce graphics with exceptional realism and color intensity.

  • With True Rich Color you have access to amazing new color profiles to help you generate a whole new level of color vibrancy in your prints
  • True Rich Color and TR2 inks combine neutral grays, smooth gradations, and natural skin tones to expand your color gamut
  • TR2 ink is GREENGUARD Gold certified for low-emission printing
  • Exceptionally scratch-resistant, TR2 ink is durable up to three-years outdoors without lamination
SG2 True Rich Color

Sharp New Cutting with Added Ease and Precision

Multicrop
Multicrop
New Crop Mark Features
In a few easy clicks, you can improve accuracy on long print runs of stickers, heat transfers and more with custom cropping and the new Crop Mark by Row function in VersaWorks 6 software. When handling intricate files, you can also select Crop Mark by Image.


Perfcut
Perfcut
PerfCut Mode
Print, cut, and die-cut with ultimate ease using easy perf-cutting tools. Advanced SG2 and VersaWorks 6 RIP software combine to make batching stickers and decals a simpler process.

Productivity Features

Improved workflow
With faster job setup time and sequence, reduced ink maintenance consumption, and other productivity features, the SG2 offers added usability and performance.
Optional Media Take-Up
An optional new TUC4 take-up system offers smooth and stable production— it has two modes to handle everything from adhesive backed vinyl to thicker media like canvas and banner.
Nozzle Mask Function
If a nozzle on the printhead is clogged and misfiring, you can turn off a specific nozzle band and carry-on printing.
Roland DG Mobile Panel
Clean, test print, and troubleshoot your SG2 from the comfort of your tablet or smartphone with Bluetooth enabled printer management.
SG2 Large-Format Printer/Cutter

Add Social Distancing Signage
to Your Applications

Produce essential graphics and signage for schools, stores, restaurants and more with this all-in-one solution that includes templates, media, and equipment.

Learn More

SG2 Large-Format Printer/Cutter

Included VersaWorks 6
RIP Software

The latest edition of the world’s most popular RIP software offers new features for effortlessly managing your print output.

HARLEQUIN RIP dual core engine and 64-bit native processing for enhanced speed and file handling.

Easy new drag-and-drop interface allows you to quickly add jobs to the print queue.

Five print queues, five hot folders and unlimited queue settings.

Integrated spot color libraries include Pantone and Roland DG Color libraries.

All the advanced and easy cropping, tiling, nesting and other features of VersaWorks.

Match color output between different printers and print modes from a single printer with Printer Color Match Settings that integrates profiling tools such as the i1 Pro3 and new VW-S1 color measuring tool. Read the FAQ’s

Create cut data directly in VersaWorks 6 by extracting PDF data from your design file to use as a cut line— changing vector data into cut line data, merging multiple cut lines together, creating perf cut lines, and other intuitive features.

VersaWorks 6
Health Check

Roland DG Connect App
For Everything Creative

Reduce downtime and improve work efficiency with a machine monitoring assistant that helps you gain a detailed understanding of your entire print operation while keeping your device running at optimum performance.
FIND OUT MORE
Health Check

Built to Build Your Business

TrueVIS large format inkjet printer/cutters have won multiple awards for their eye-opening color and image quality that helps you stand out from the competition. With Japanese engineering and an uncompromising attention to detail, the SG2 is designed for creative and dedicated professionals like you, who require quality, dependability and versatility to build new levels of profit and success.
Discover TrueVIS
2 Year Warranty
2 Year Warranty

Roland DGA’s Industry-Leading Warranty and Support

For over 35 years, Roland DGA has earned a reputation for building long-lasting, high-performance devices and backing them with first-rate customer service and support. For added assurance and peace-of-mind, the SG2 is supplied with a Two-Year Trouble-Free Warranty.

Additional Information

Expand All | Collapse All

To receive a free print sample from the TrueVIS2 SG2, complete the form below and click Submit.

TrueVIS SG2 Series
SG2-640 SG2-540 SG2-300
Printing method Piezo ink-jet method
Media Width 12.4 to 64 in. (315 to 1,625 mm) 10.8 to 54 in. (275 to 1,371 mm) 7.6 to 30 in. (182 to 762 mm)
Thickness Max. 39 mil (1.0 mm) with liner, for printing
Max. 16 mil (0.4 mm) with liner and 9 mil (0.22 mm) without liner, for cutting
Roll outer diameter Max. 8.3 in. (210 mm )
Roll weight Max. 88 lb. (40 kg) Max. 66 lb. (30 kg) Max. 55 lb. (25 kg)
Core diameter (*1) 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*2) Max. 63 in. (1,600 mm) Max. 53 in. (1,346 mm) Max. 29 in. (736 mm)
Ink Type TrueVIS INK 500 ml pouch
Colors Four colors (cyan, magenta, yellow, and black)
Printing resolution (dots per inch) Max. 1,200 dpi
Cutting speed 0.4 to 11.8 in/s (10 to 300 mm/s)
Blade force (*3) 30 to 500 gf
Blade Type Roland CAMM-1 series blade
Offset 0.0 to 59.1 mil (0.000 to 1.500 mm)
Software resolution (when cutting) 0.98 mil/step (0.025 mm/step)
Distance accuracy (when printing) (*4) (*5) Error of less than ±0.3% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater
Distance accuracy (when cutting) (*4) Error of less than ±0.4% of distance traveled or ±11.8 mil (±0.3 mm), whichever is greater
When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled or ±3.9 mil (±0.1 mm), whichever is greater
Repeatability (when cutting) (*4) (*6) ±3.9 mil (±0.1 mm) or less
Alignment accuracy for printing and cutting (*4) (*7) ±19.7 mil (±0.5 mm) or less
Alignment accuracy for printing and cutting when reloading media (*4) (*8) Error of less than ±0.5% of distance traveled, or ±0.2 in. (±3 mm), whichever is greater
Media heating system (*9) Print heater set temperature: 86 to 112°F (30 to 45°C)
Dryer set temperature: 30 to 50°C (86 to 122°F)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or
AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz		 AC 100 to 120 V ±10%, 5.4 A, 50/60 Hz or
AC 220 to 240 V ±10%, 2.7 A, 50/60 Hz
Power consumption During operation Approx. 1,090 W Approx. 710 W
Sleep mode Approx. 40 W
Acoustic noise level During operation 63 dB (A) or less
During standby 53 dB (A) or less
Dimensions (with stand) 116 [W] × 28.8 [D] × 51.6 [H] in.
(2,945 (W) × 730 (D) × 1,310 (H) mm)
 105.8 [W] × 28.8 [D] × 51.6 [H] in.
(2,685 (W) × 730 (D) × 1,310 (H) mm)		 81.5 [W] × 28.8 [D] × 51.6 [H] in.
(2,070 (W) × 730 (D) × 1,310 (H) mm)
Weight (with stand) 434 lb. (197 kg) 397 lb. (180 kg) 324 lb. (147 kg)
Environment During operation Temperature: 68 to 90°F (20 to 32°C),
Humidity: 35 to 80%RH (no condensation)
Not operating Temperature: 41 to 104°F (5 to 40°C),
Humidity: 20 to 80%RH (no condensation)
Included items Dedicated stands, power cord, media clamps, media holders, replacement blade for separating knife, manuals, etc.
  1. The media holders of this machine are designed to be used exclusively with media that has a paper tube (core)with an inner diameter of 3 inches. To use 2-inch media, the optional media flanges are required.
  2. The length of printing or cutting is subject to the limitations of the program.

    • 500 gf is the maximum instantaneous blade force.
    • The blade force must be adjusted according to details such as the media thickness.
    • Media type: Media specified by Roland DG Corporation
    • Temperature: 25°C (77°F), humidity: 50%RH
    • Roll media must be loaded correctly.
    • Applicable when all pinch rollers that can be used with the media width are used.
    • Side margins: 25 mm (1.0 in.) or more for both the left and right margins
    • Excluding expansion/contraction of the media
    • Not assured when the print heater or dryer is used.
    • Assumes all correction and adjustment functions of the machine have been used properly.
  5. Print travel: 1 m (39.4 in.)
    • [PREFEED] menu item must be set to "ENABLE."
    • Range for assured repetition accuracy
      • For media with a width exceeding 610 mm (24.0 in.): Length: 4,000 mm (157.5 in.)
      • For media with a width of 610 mm (24.0 in.) or less: Length: 8,000 mm (315.0 in.)
    • Provided that the media feed length is 3,000 mm (118.1 in.) or less
    • Excludes the effects of slanted movement and of expansion and contraction of the media
    • Data size:
      • 64-inch model: 1,000 mm (39.4 in.) in the media-feed direction, 1,600 mm (63.0 in.) in the carriage-movement direction
      • 54-inch model: 1,000 mm (39.4 in.) in the media-feed direction, 1,346 mm (53.0 in.) in the carriage-movement direction
      • 30-inch model: 1,000 mm (39.4 in.) in the media-feed direction, 736 mm (29.0 in.) in the carriage-movement direction
    • No lamination
    • Automatic detection of crop marks at 4 points when media is reloaded
    • During cutting, [PREFEED] menu item must be set to "ENABLE."
    • Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media.
    • Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
    • Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
