Make Your Mark
Profitable metal giftware personalization and direct parts marking

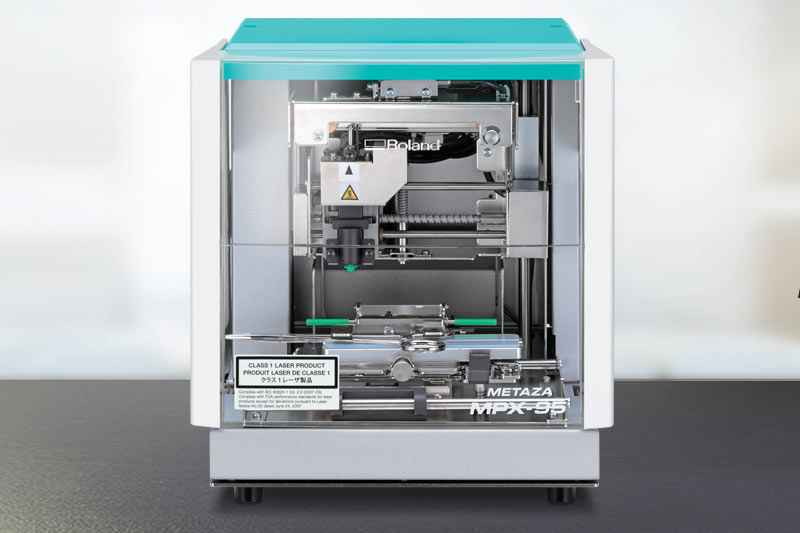

METAZA MPX-95 Photo Impact Printer

  • BASE MSRP

    $4,995 US*

  • * U.S. only. For Canada, Latin America and Caribbean pricing, please call (949) 727-2100, or contact an Authorized Roland DGA Dealer in your area.

Perfect for kiosk and gift shop applications, the new METAZA MPX-95 photo impact printer, easy-to-operate solution for personalizing high-value metal items and making them even more unique and profitable.

Request a Call

Watch with Variable Serial Data

Personalize Hundreds of Metal Items

MPX-95 personalization options include:

  • Pens and business card holders
  • Smart devices
  • Jewelry
  • Sunglasses
  • Flasks and tankards
  • Vases and urns
  • Watches
  • Golf clubs
  • Trophy plates
  • Dog tags

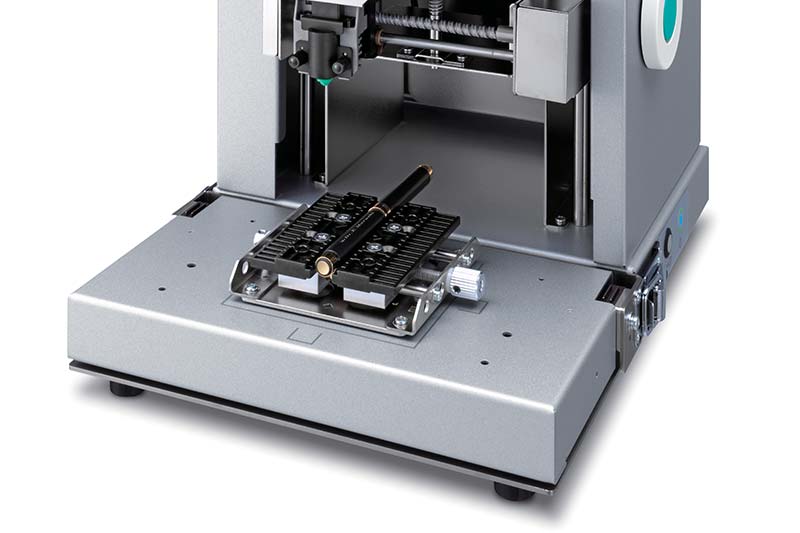

MPX-95 with Personalized Pen

Imprint Photographs, Vector Graphics and Text

A durable diamond-tipped stylus strikes the material with high speed and precision to reproduce the most delicate gradations and finest fonts. The results are exceptional, with detailed graphics and fonts that stand out.

Laser Pointer Set-Up

A built-in laser pointer accurately defines the origin point on media before imprinting. At the touch-of a button, users can set the print position for accurate personalization every time.

Removable Base for Expanded Material Sizes

The base plate and base unit of the MPX-95 can be removed to enable it to imprint onto larger items like golf clubs and metal vases.

Center Vise

Optional Center Vise

When imprinting onto many different items in succession, the fixed center vise allows for quick set-up and personalization of items.

Head Caps

Head Caps

For attaching to the MPX-95's head unit when imprinting onto curved and flat surfaces, thirty rounded and ten head caps are included in the DPM Kit.

Personalized Wine Bottle Holder

More Precision, Less Fuss

Without debris, noise or odor, users can add photo quality detail and complex barcode data to a printable area as small as one square millimeter and as large as 80 millimeters. There's far better accuracy and a lot less clean-up with a MPX-95 photo impact printer.

Personalized Chain

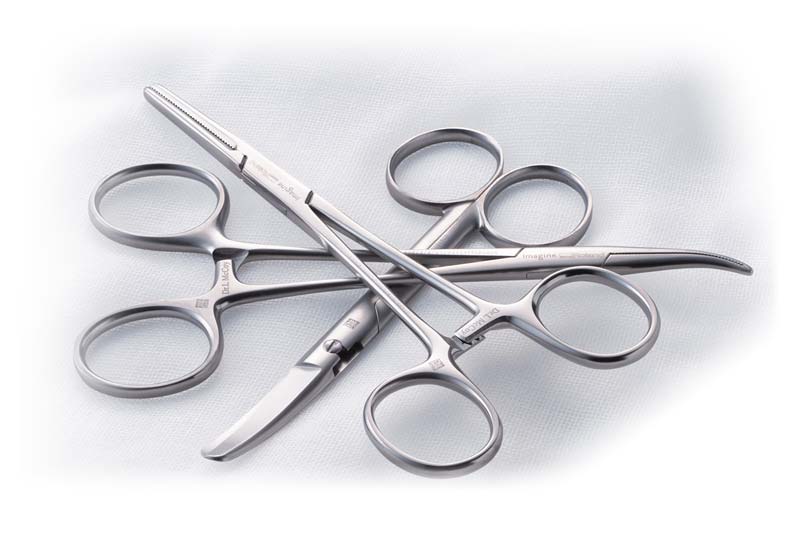

Medical devices

Other Distinguishing Features

  • Diamond-tipped stylus marks silver, copper, platinum, brass, and aluminum up to 200HV
  • Includes easy-to-use METAZA Studio software
  • Built-in laser pointer for quick and precise imprint set-up
  • Automatic surface detection
  • Variable data printing capabilities for applying sequential data
  • Compact and fully enclosed – runs quietly and safely in any kiosk, store or lab

Additional Information

Expand All | Collapse All
Model MPX-95
Imprintable material Gold, silver, copper, platinum, brass, aluminum, iron, stainless steel, titanium, etc.
(Vickers hardness [HV] of the imprint surface must be 200 or less.)
Loadable material size Using a base table + base plate: Max. 3.9 in (W). X 7.9 in. (L) X 1.6 in. (H)
(100 mm (W) X 200 mm (L) X 40 mm (H))
or
7.9 in. (W) X 3.9 in. (L) X 1.6 in. (H)
(200 mm (W) X 100 mm (L) X 40 mm (H))
Using a base plate only: Max. 3.9 in. (W) X 7.9 in. (L) X 2.8 in. (H)
(100 mm (W) X 200 mm (L) X 70 mm (H))
or
7.9 in. X 3.9 in. X 2.8 in.
(200 mm (W) X 100 mm (L) X 70 mm (H))
*The above are for when the cover is closed. When the cover is open, there is no limit on how large the material can be, but the imprint area of the material must be placed within the imprint area.
Imprint area Maximum imprintable area 3.2 in. (W) X 3.2 in. (D) X 2.8 in. (H)
80 mm (W) X 80 mm (D) X 70 mm (H)
Recommended imprint area 2.0 in. (W) X 2.0 in. (D) X 2.8 in (H)
50 mm (W) . 50 mm (D) . 70 mm (H)
Resolution High resolution 529 dpi
Photo 353 dpi
Text 265 dpi
Vector 1058 dpi
Imprint direction Unidirectional imprinting or bidirectional imprinting (Selectable with Windows driver)
Imprint speed (Default) Photo 2.0 in./sec (50 mm/sec)
High resolution/Text 1.2 in./sec (33 mm/sec)
Vector 0.94 in./sec (24 mm/sec)
Interface USB
Power requirements Dedicated AC adapter AC 100 to 240 V ±10%, 50/60 Hz
Main unit DC 19 V, 1.2 A
Power consumption Approx. 21 W
Operating noise 70 dB (A) or less
Operating temperature 50 to 86°F (10 to 30°C)
Operating humidity 35 to 80% (no condensation)
External dimensions 11.3 in. (W) x 15.1 in. (D) x 12.2 in. (H)
286 mm (W) x 383 mm (D) x 308 mm (H)
