VersaUV LEF2-300
TURN UP THE VOLUME, TURN UP THE PROFIT
On Product Customization

NEW VersaUV LEF2-300 Benchtop UV Flatbed Printer

Featuring a 30” print width, four print heads and two UV-LED lamps for higher-volume product customization, the VersaUV LEF2-300 flatbed printer enables direct printing onto accessories, giftware, ceramics, and countless other products— producing stunning color, realistic textures and stylish embossed effects.

As Roland’s largest, fastest and most feature-packed LEF technology to-date, it offers brand new production ease and efficiency.

Request a Dealer

On-Demand Printing on One or Many Items

VersaUV LEF2-300 printing custom Coasters

Power Your Customization Business with Added Size and Speed

Built to build success for your customization store, internet shopfront, kiosk, sign shop, or other business, the LEF2-300 has a larger overall print area than most UV printers in its class. It also prints at high production speeds to give you an expansive solution that fits the needs of your growing business.

Offer Unique Custom Items with ECO UV Ink

Feel the Color with Gloss ECO-UV Ink

Print onto higher volumes of items and add gloss/matte finishes, realistic textures, or 3D embossed effects to add a whole new dimension of “touch and color.” Develop your own special finishes or choose from seventy-two, ready-to-use texture patterns in our Roland Texture System Library.

flower texture printed lef2-300
glass texture printed on LEF2-300
Rocks texture printed on LEF2-300
Wood texture printed on an LEF2-300
Feather texture printed on an LEF2-300
Leaves texture printed on an LEF2-300
LEF2-300

State-of-the-Art Ink Printing

Print graphics with smooth color and exceptional detail on a virtually limitless range of merchandise, materials and products.

  • CMYK, White and Gloss ECO-UV® (EUV4) inks offer stunning results.
  • ECO-UV® (EUV4) inks are engineered for use on all applications— you don’t need to purchase multiple ink sets for different media use.
  • Create colors that pop on dark or clear substrates with White ink that acts as a spot color.
  • Optional Primer ink enables you to prep the surface of materials like acrylic and plastic for full-color customization.*
  • An Automated Ink Circulation System stops ink pigments from settling in the ink lines for even consistency.
  • Mist Filters catch the surplus ink that mists off the edges of your media to avoid overspray and keep ink from falling on internal components.
  •

    * For optimum primer results, it’s highly recommended that users test for adhesion to media items before final production

Wood Box and Album


Are you located in the United States, Canada, or Latin America?



UV Customization with More Ease and Efficiency

The simple-to-operate LEF2-300 is fully-loaded with advanced new machine features. Completely enclosed when printing, it runs clean, cool and energy efficiently with low-heat UV-LED lamps and self-wicking ink features. It offers many new machine advantages to lessen downtime and streamline your print process.

Head Refresher

Remove the ink remaining on your printheads with a machine feature that keeps the printhead surface clean to maintain machine health and ink cost-efficiency.

Easy-Positioning Fixtures

Simplify the set-up and alignment of items with corner brackets that easily affix to the print bed.

Nozzle Mask Function

Minimize printer downtime if a nozzle on a printhead becomes clogged and misfires by turning off a specific nozzle band to enable continued production.

New Machine Panel Options

A newly configured machine menu includes media height display, custom setting the origin point, and custom preset naming to increase job set-up and operation efficiency.

Start Timer Function

Automatically complete the setup operation of printhead cleaning and White ink circulation, so you can begin printing immediately after loading items— an auto wake-up feature acts like an alarm clock, alerting your LEF2-300 to start cycling procedures.

Included VersaWorks 6
RIP Software

With powerful new 64-bit processing and RIP capabilities, plus cropping, tiling, nesting, and other tools, the world’s most popular RIP software makes production even simpler while maximizing the capabilities of your print device.

Advanced RIP features include new print queue options, up to 40 job presets, UV post cure within the RIP and 16-pass print mode (standard 720x720).

A Special Color Plate Generation feature allows you to automatically generate White, Gloss and Primer layer directly in the RIP.

Print multiple images and text onto media in a single print run with variable data tools.

Rotate, set spacing and maintain clip position inside the RIP when printing your graphics and applying Gloss ink effects.

Create color consistency with select Roland devices— print, scan and transfer color values.

VersaWorks 6

Productivity Features

Intelligent Test Printing
Save time and materials by altering the test print position— test print on the same material multiple times.
Roland Intelligent Pass Control
Controls dot placement between each pass for faster throughput and excellent image quality in all print modes.
LED Pointer Set-Up
A new LED pointer precisely pinpoints the origin point of your print job.
Roland OnSupport
You’ll receive an e-mail or smart phone alert when ink is low or when a job is complete for an unattended, worry-free operation.
Vacuum Bed
Hold media perfectly steady with an optional vacuum bed that ensures print stability.
RotaPrint Accessory
Get excellent print results when printing on cylindrical objects with an optional machine attachment.
LV & LEF Combo
LV & LEF Combo

The LV/UV Combo
Get Machine Savings Over $10,000

Pair a Roland VersaUV LEF flatbed printer with a Roland LV laser engraver/cutter to create a complete personalization solution. Cut-out and engrave materials with an LV-290 and add full-color graphics and Gloss textures with an LEF2-300.

Offered at a massively reduced price, the LV/UV combo includes air filtration units for both devices and other machine essentials.

Find Out More About the
LV/UV Combo

Additional Information

Model LEF2-300
Printing method Piezo ink-jet method
Attachable objects to be printed on Width Max. 31.5 in. (800 mm)
Length Max. 14.2 in. (360 mm)
Thickness Max. 3.94 in. (100 mm)
Weight Max. 18 lb. (8 kg)

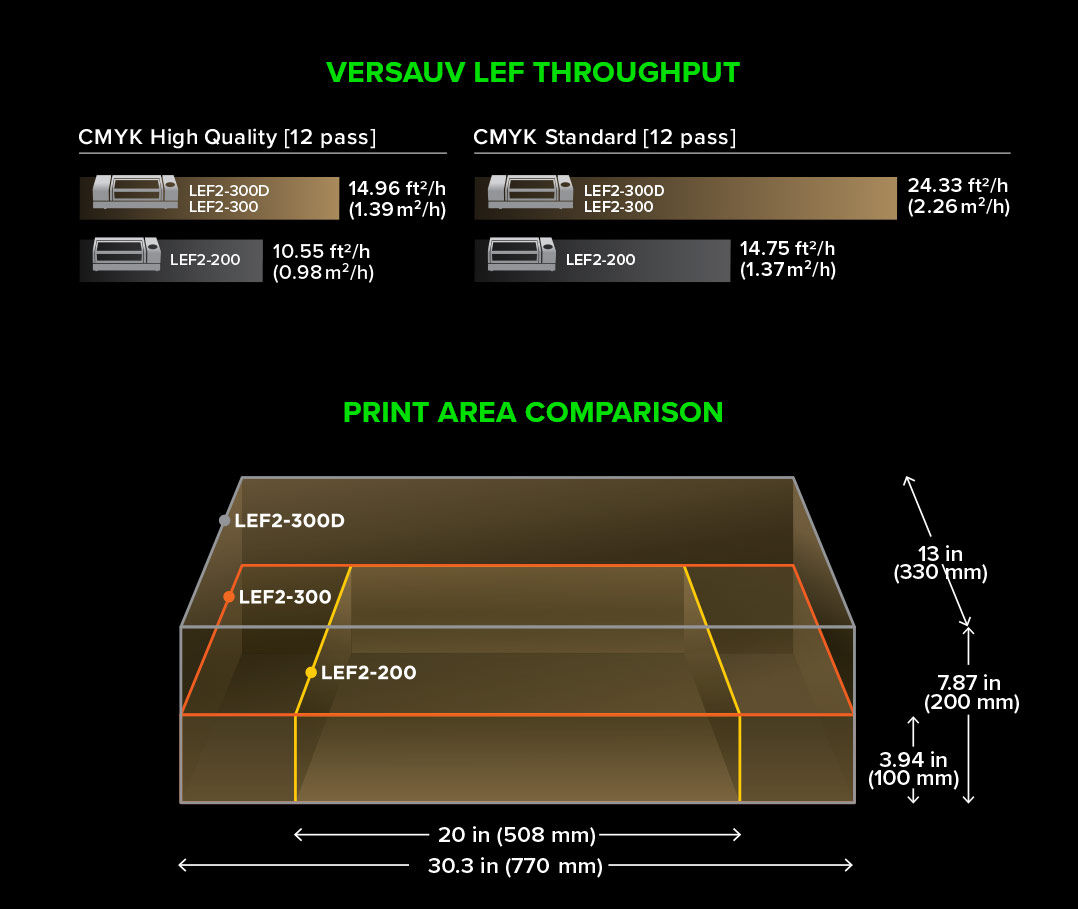

Maximum printing width / printing length Max. 30.3 (width) × 13 (length) in. (770 × 330 mm)
Ink Type ECO-UV (EUV4) 220 ml cartridge,
ECO-UV (EUV4) 500 ml cartridge (White ink is not available in 500 ml cartridges.)
Colors Six colors (cyan, magenta, yellow, black, white, and gloss × 2)
Six colors (cyan, magenta, yellow, black, white, and gloss) and primer
Ink-curing unit Built-in UV-LED lamp
Print resolution Max. 1440 dpi
Distance accuracy* ±11.8 mil (±0.3 mm) or ±0.3% of the specified distance, whichever is greater
Position reproducibility * ±7.9 mil (±0.2 mm) or ±0.1% of the specified distance, whichever is greater
Connectivity Ethernet (10BASE-T/100BASE-TX, automatic switching)
Power-saving function Automatic sleep feature
Power requirements AC100 to 240 V ± 10%, 2.1 A, 50/60 Hz
Power consumption During operation Approx. 178 W
Sleep mode Approx. 18 W
Acoustic noise level During operation 60 dB (A) or less
During standby 49 dB (A) or less
Outer dimensions 61.4 [W] × 37.6 [D] × 22.7 [H] in.(1,560 (W) × 955 (D) × 576 (H) mm)
[ When the ink-cartridge tray is
attached; 73.5 × 37.6 × 22.7 in.
(1,866 × 955 × 576 mm) ]
Weight 317.5 lb. (144 kg)
Environment During operation Temperature: 68 to 90°F (20 to 32°C) (72°F (22°C) or higher recommended), Humidity: 35 to 80% RH (no condensation)
Not operating Temperature: 41 to 104°F (5 to 40°C), Humidity: 20 to 80% RH
(no condensation)
Included items Power cord, software RIP, cleaning liquid, drain bottle, manuals, etc.

* Temperature: 25°C (77°F), Humidity: 50% RH

This device is capable of printing on a wide variety of substrates. However, the print quality or the ink adhesion may vary according to the substrate used and it is strongly recommended to test the substrate for compatibility to ensure optimal print results.

Vaporized components may slightly irritate the eyes, nose and/or throat during and following printing with this product. If continuously printing in a closed space, the density of volatile compositions will accumulate and may irritate the eyes, nose and /or throat. Roland DG strongly recommends that you install a ventilation system and use this product in a well-ventilated room. For more information, please contact your local distributor or dealer.

VersaWorks 6 System Requirements
Operating System Windows® 10 (32/64-bit), Windows® 8.1 (32/64-bit), Windows® 7 Ultimate / Professional (32/64-bit)
CPU Intel® Core™ 2 Duo, 2.0 GHz or faster recommended
RAM 2 GB or more recommended
Video card and monitor A resolution of 1,280 x 1,024 or more
Free hard-disk space 40 GB or more recommended
Hard-disk file system NTFS format
Optical drive DVD-ROM
Other Internet connection recommended
VersaUV LEF-12i VersaUV LEF2-200
  VersaUV LEF-12i VersaUV LEF2-200 VersaUV LEF2-300
Maximum Print Area 12" × 11"
305 mm × 280 mm
20" × 13"
508 mm × 330 mm
30" × 13"
770 mm × 330 mm
Ink Configuration Options CMYK + Clear (gloss) + White

CMYK + Clear (gloss) + White

CMYK + Primer + White

CMYK + White + White

CMYK + Clear (gloss) + Clear (gloss)+ White

CMYK + Clear (gloss) + White+ Primer

Included RIP Software VersaWorks 6
Accessories BOFA air filtration system (optional)

RotaPrint cylindrical printing attachment (optional)
Download the RotaPrint brochure (pdf)
Ideal For Short-run customization of USB drives, smart phone covers, photo frames and other small objects. Short-run customization of small to medium-sized items, plus pre-primed printing onto various substrates and unique surfaces. Volume production of small to medium-sized items, plus pre-primed printing onto various substrates and unique surfaces.
  Explore LEF-12i   Explore LEF2-200   Explore LEF2-300
