MODELA MDX-50 Benchtop CNC Mill Features

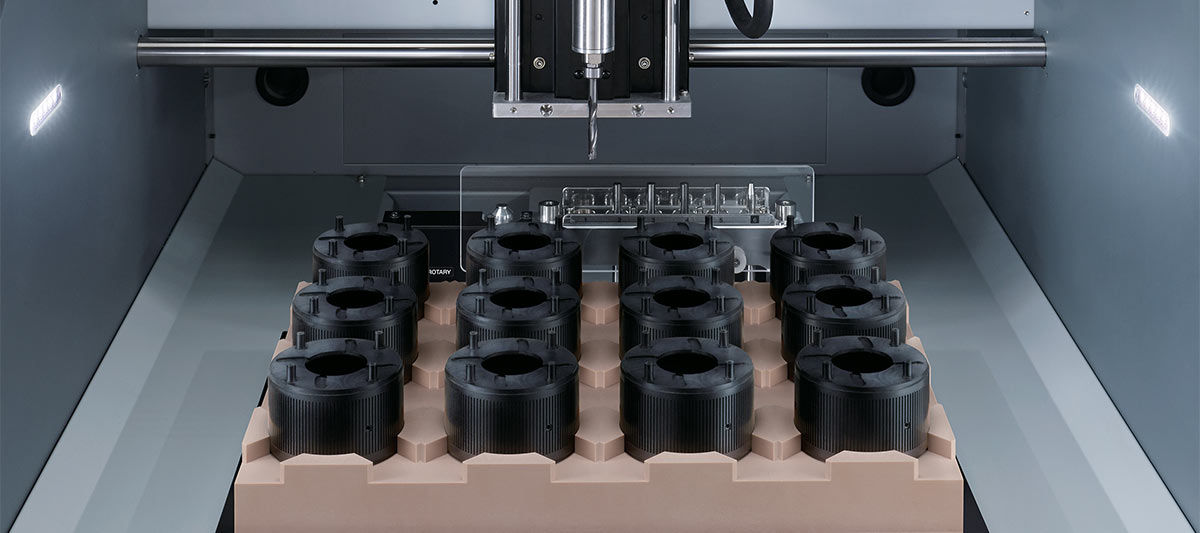

MDX-50 Workspace with Sample
MDX-50 Workspace with Sample

Precision Milling on a Wide Range of Materials

The following items are just some of the materials that can be milled with the MDX-50 benchtop CNC mill:

ABS
POM
Nylon
Plastic Foam
Modeling Wax
PVC
Plywood
Hardwood
Acetal

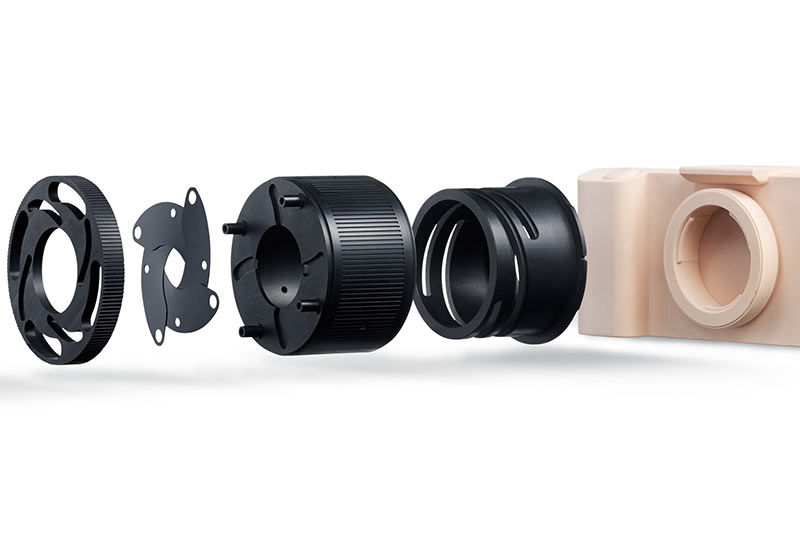

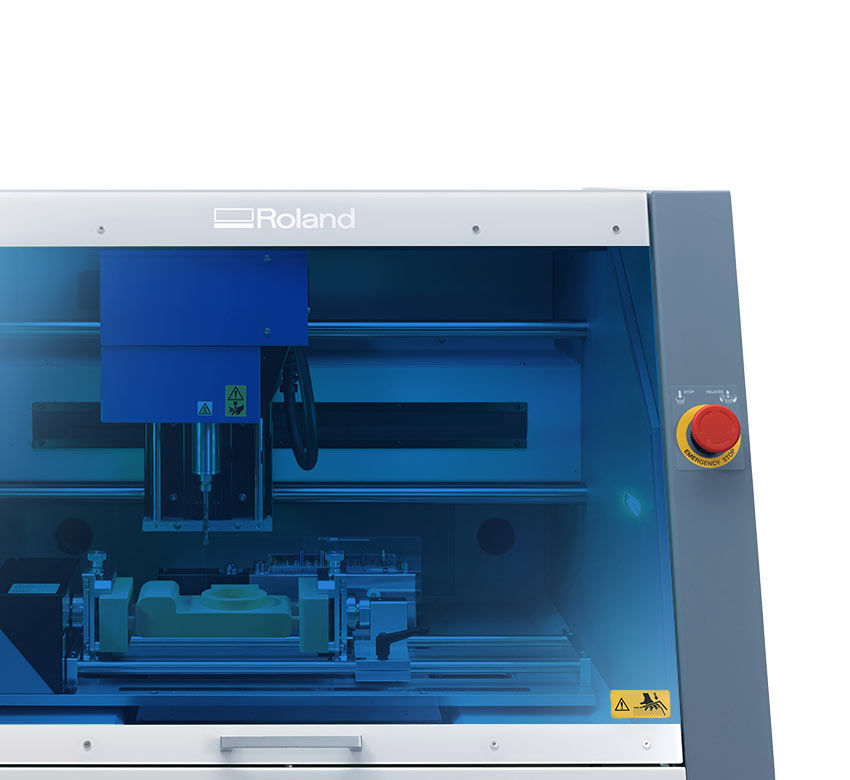

MDX-50 closeup with prototype

Mill Fine Details and Smooth Finishes

With an improved drive system, machine rigidity and enhanced drive mechanics, the MDX-50 mills incredibly smooth and accurate prototypes for testing structure, function, and assembly with other parts. A machining area of 15.8”(400mm) (X) x 12”(305mm) (Y) x 5.3”(135mm) (Z) supports production of large single objects or batch production of smaller multiple parts.

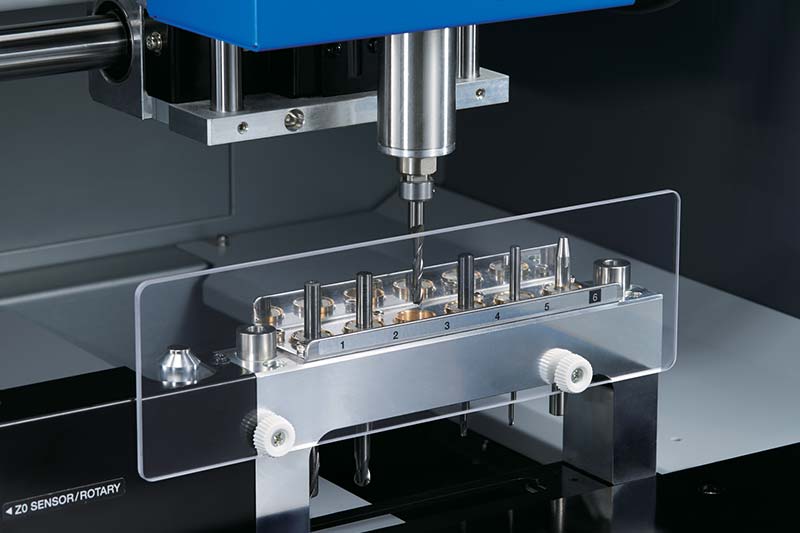

MDX-50 Tool Changer

Free Your Time

The automated features of the MDX-50 enables users to mill with speed and confidence. Combine the 5-station ATC and optional rotary axis unit for the most automated and precise operation:

  • Auto-sensing function corrects the tool length to ensure milling accuracy for every job
  • Optional rotary axis for effortless production of complex surfaces:
    • Includes a wide, self-centering headstock and tailstock workpiece clamps
    • Auto-rotates materials from 0-to-360 degrees
    • Indexes for 2-sided, 4-sided and custom angles

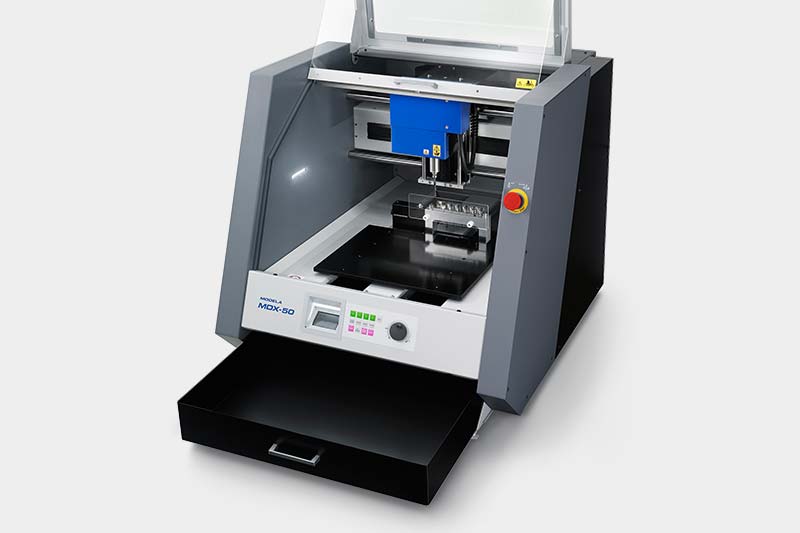

MDX-50 Setup
MDX-50

Built-in Control Panel

With a built-in control panel at the front of the unit, almost all operations can be completed from the unit itself. Users can perform operating functions and view the current job status without needing to constantly check their PC.

Simplified Machine Set-Up

The MDX-50 reduces the time and effort of machine set-up with an expanded work area, inner-machine lighting for clear visibility, and an included tool adopter that enables instant installation of ATC tools – requiring no wrench or additional tools.

Safe, Clean and Convenient Production

The MDX-50 is designed for use in studio and educational environments. A rail guided safety door ensures extra-safe operation while waste is contained in a built-in debris collection drawer.

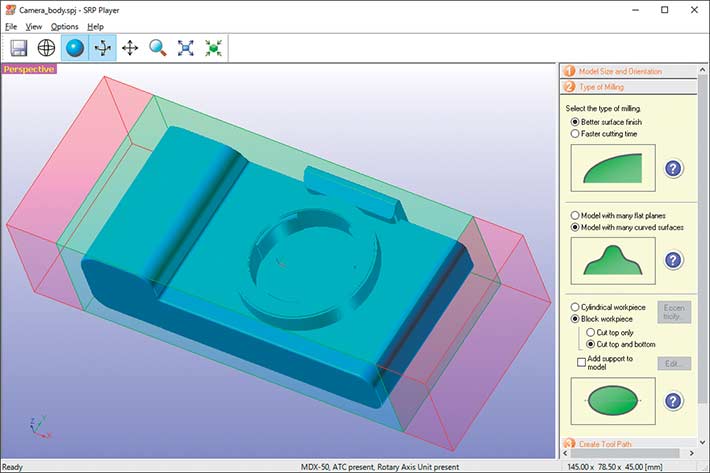

SRP Player

Included Software for Experts and Beginners

SRP Player

SRP Player CAM

The popular in Industry and Education software has been updated to match the advanced functions of the MDX-50. Milling settings can be configured in five simple steps, making operation straightforward even for those new to milling.

SRP PLAYER DETAILS

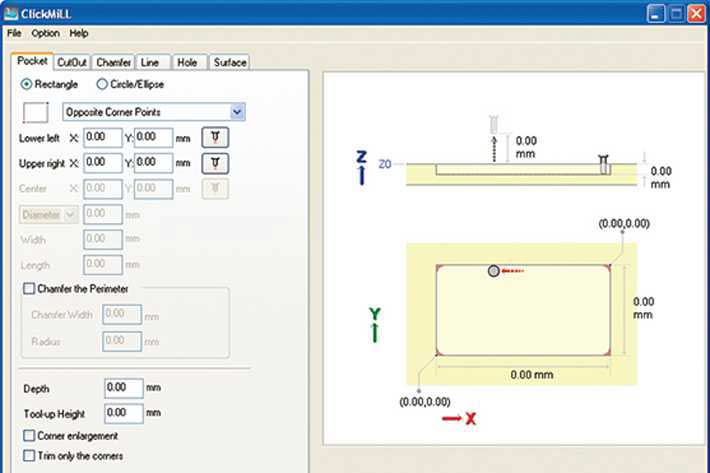

ClickMill
ClickMill

ClickMill

ClickMill Software provides direct control of the MDX-50 for surfacing, drilling holes, cutting pockets and other finishing processes, all without having to access CAD or CAM software.
GCode
GCode

G Code Support

The MDX-50 supports G-code NC programming language, making it well suited for both professional and educational applications.

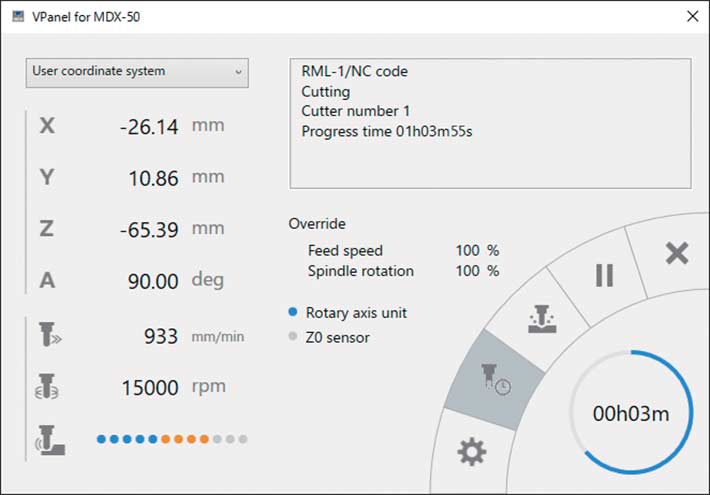

VPanel
VPanel

Virtual Control Panel (VPanel)

VPanel serves as a computer-based virtual control panel with all of the functionality of the physical on-board control panel, as well as tool life management and e-mail alerts.
Roland international ISO certifications
Roland international ISO certifications

Superior Reliability and Support

The MDX-50 represents the most reliable technology backed by unmatched customer service and technical support, and comes with a comprehensive one-year manufacturer’s warranty.
Roland DG's international ISO certifications are your assurance of our commitment to quality products and service.
