"Build brands, build your reputation, and build success
with absolute color control and quality."

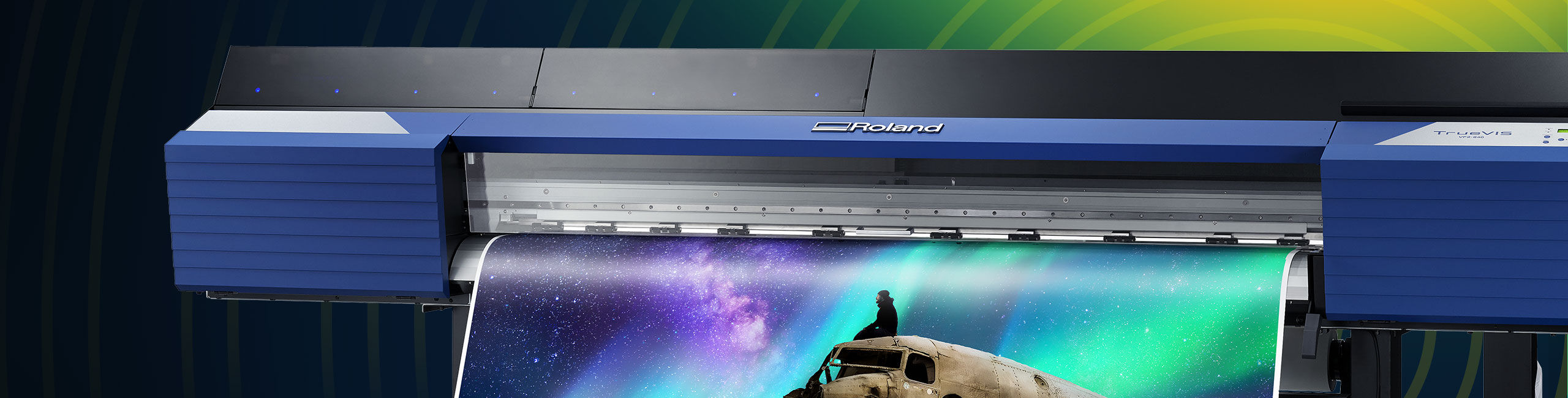

TrueVIS VF2-640 Wide Color Gamut Printer

MSRP

$18,995 US*

* U.S. only. For Canada, Latin America and Caribbean pricing, please contact an Authorized Roland Dealer in your area for details.
LEASE PRICE

$380 US*
Apply Now

** For 60 months, OAC

The TrueVIS VF2-640 large format printer doesn’t just widen your color gamut, it takes your color completely off-the-chart with our richest and most vivid TrueVIS color output yet that allows you to perfectly target specific brand colors.

Award-winning TR2 Inks feature new Green and Orange ink choices to target previously unreachable or difficult-to-match colors
A smooth, seamless print operation with enhanced design, job sequences, software functions, operation panel and “two-mode” take-up unit
3M™ MCS™ Warranty and Avery Dennison™ ICS™ Warranty Program certified for added print confidence

Deliver Perfectly Branded Displays, Promos, Wraps and More
with the Color Power of the VF2-640

As part of the new generation of TrueVIS technology, the VF2-640 large format printer has been developed for unprecedented gamut expansion, exceptional close-up detail, and the unique ability to achieve both vividness and natural color reproduction. The VF2-640 answers the exact color requirements of your clients and rises above the quality standards of your competitors.

**Pop Displays and Promotions**
Produce wide color gamut printed graphics with crisp, close-up details and color for high-end displays in stores, restaurants, offices and other locations to meet the exacting standards of discerning clients.

SIGNS AND BANNERS — **Signs and Banners**
**New 3M and Avery certified inks perform brilliantly on a wide range of coated and uncoated media to give you outstanding color and durability up to three-years outdoors without lamination.**

WALL AND WINDOW GRAPHICS — **Wall and Window Graphics**
Perfectly recreate logos and branding for walls, windows and floors in stores, hotels, restaurants and corporate locations. Also produce inspirational designs for artistic applications with photorealistic image intensity and detail.

**Vehicle Wraps and Graphics**
If you want to create the most vivid graphics or perfectly recreate branded colors on company vehicles, the VF2-640 wide color gamut printer is for you. Certified for use with 3M and Avery products, it provides vehicle graphics with long-lasting results.

FINE ART AND PHOTOGRAPHY — **Fine Art and Photography**
Photorealistic color quality and True Rich Color intensity combine to give you incredible print results on large format gallery art, photography projects, and other fine art applications that require high-end image results.

**Print and Cut Graphics**
Combine the VF2-640 with a CAMM-1 GR series cutter to create high-end stickers, labels, decals and heat transfer graphics— all with an easy dual-device workflow that automatically recognizes printer crop marks on printed media.

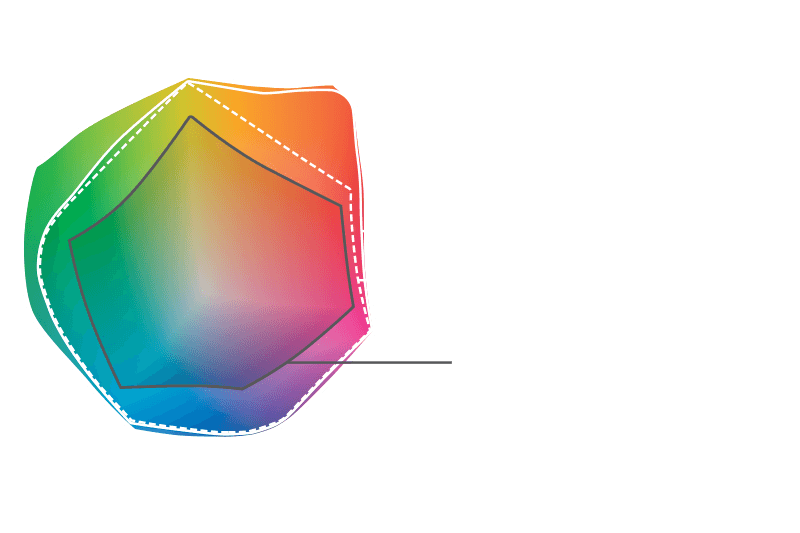

Our Best Ever Color Output
with True Rich Color 2

The True Rich Color 2 preset in VersaWorks 6 RIP software takes full advantage of Greenguard Gold Certified TR2 Inks in CMYK, Light Cyan, Light Magenta, Light Black, White, Orange and Green ink configurations. The off-the-chart color gamut of True Rich Color 2 maximizes the potential of both printer and ink for ultimate vibrancy combined with neutral greys, smooth gradations, and natural skin tones.

The Benefits
of Green and Orange TR2

Pantone and Color Targeting Capabilities

Standard Pantone® and DIC colors can be quickly matched with accurate results using the Roland DG Color System Library. With approximately 260 new spot color references for Orange to Red areas and Blue to Green areas now available, specific targets which had been regarded as unreachable or difficult to match can now be easily achieved.

Green and Orange for Added Color Accuracy on Many Colors

A new “green territory of color” doesn’t just mean advanced green color matching. It equates to new areas of purples, reds, and other challenging hues. A new Multi-Process Color Function has also been developed for the VF2-640 to enable use of Orange and Green inks as process colors.

Quality Ink Certifications
for Added Confidence and Assurance

Global print material providers, 3M and Avery Dennison offer warranty coverage for graphics printed with the VF2-640 and TR2 ink— with Avery Dennison offering warranty coverage for same day print, lamination and wrapping.

The combination of VF2-640 and new TR2* Ink is certified for long-lasting results under the 3M™ MCS™ Warranty. It provides your customers with assurance of the quality and reliability of their graphics.

*The 3M™ MCS™ Warranty covers printing onto 3M products with standard TR2 inks.

Learn More About
3M™ MCS™ Warranty

The VF2-640 with new TR2** Ink is also certified by Avery Dennison’s ICS Performance Guarantee which provides added protection and warrants prints for same-day lamination.

**The Avery Dennison™ ICS Performance Guarantee covers printing onto Avery Dennison products with standard TR2 inks.

Learn More About
Avery ICS Performance Guarantee

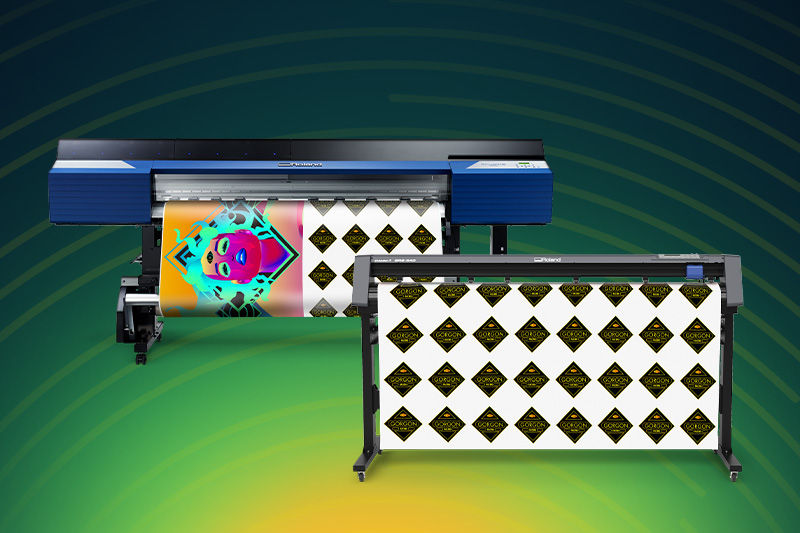

Easily Combine with a CAMM-1

Roland DG Quadralign™ System automatically recognizes print crop marks on printed media for a flawless dual device print and cut operation. The VF2-640 works best when combined with CAMM-1 technology but also works well with other vinyl cutters.

A Smarter, More Seamless Print Operation

To enhance user experience and streamline the entire printing operation, we fine-tuned the VF2-640’s design, job sequences, software functions, operation panel and maintenance procedures.

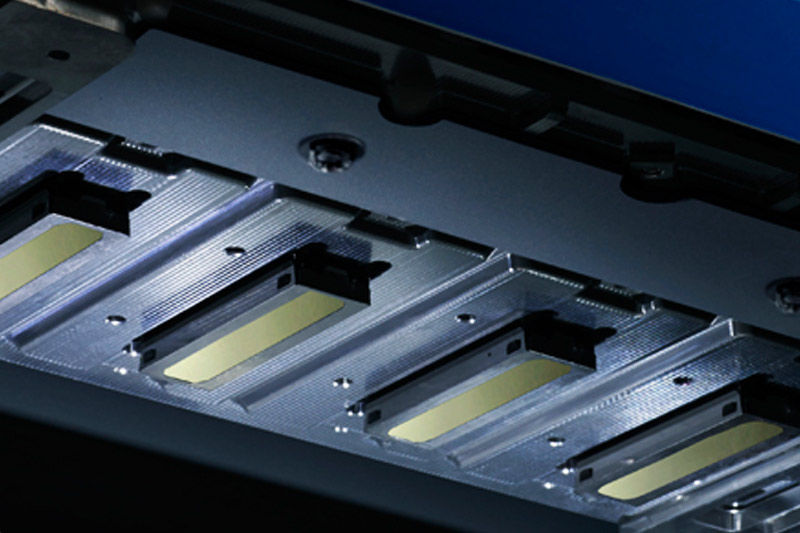

FlexFire Printheads

Roland DG FlexFire printheads maximize printing performance so that even the highest speed setting delivers more detailed and vivid color results.

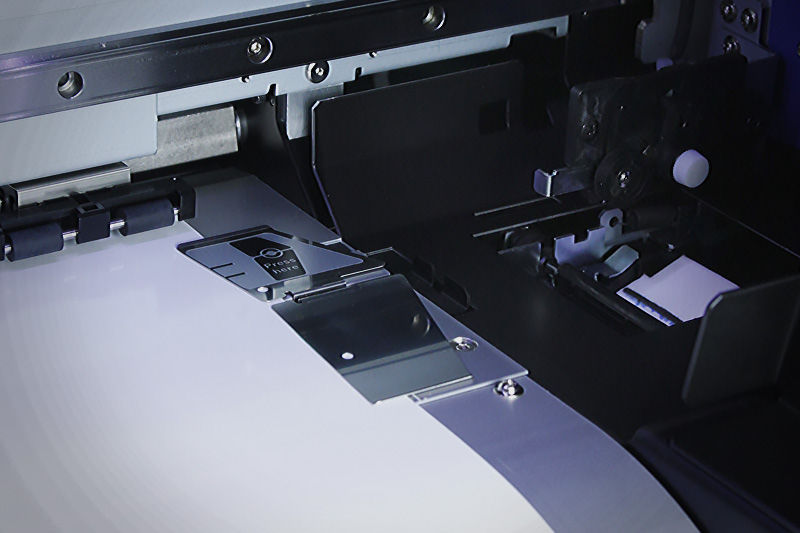

New Media Clamps

Smart new media clamps with integrated grooves no longer interfere with sheet-cutting or need to be removed at any time— providing you with a more efficient print operation

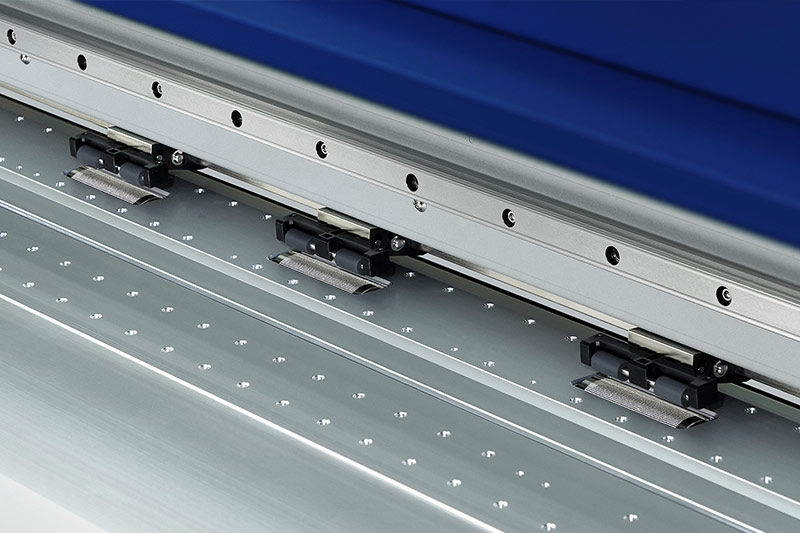

Newly Designed
Pinch Roller System

Allows the user to easily load material and maintain tracking accuracy, even over the longest print jobs.

Productivity Features

	Improved Machine Operation With improved machine operation, the VF2-640 offers smooth production and print efficiency to help build your business.
	New Media Take-Up An included TUC4 take up system offers two modes to expertly handle everything from thin films to heavy canvas materials and provides take-up stability for a smooth post process.

	Nozzle Mask Function If a nozzle on the printhead is misfiring, minimize printer downtime by turning off a specific nozzle band to allow continued production.
	Roland DG Mobile Panel 2 A newly improved Bluetooth enabled mobile panel allows you to test print, clean and troubleshoot your VF2-640 from your tablet or smartphone.

Included VersaWorks 6
RIP Software

With the latest edition of the world’s most popular RIP software, you can effortlessly manage your print output.

Improved speed and file handling with HARLEQUIN RIP dual core engine and 64-bit native processing.

Simplified new drag-and-drop interface to quickly add jobs to the print queue.

Five print queues, five hot folders and unlimited queue settings.

New Job Assistant function to layout and edit cut lines in VersaWorks 6 for dual machine print then cut workflows.

All the advanced and easy cropping, tiling, nesting and other features of VersaWorks.

Match color output between different printers and print modes from a single printer with Printer Color Match Settings that integrates profiling tools such as the i1 Pro3 and new VW-S1 color measuring tool. Read the FAQ’s

Create cut data directly in VersaWorks 6 by extracting PDF data from your design file to use as a cut line— changing vector data into cut line data, merging multiple cut lines together, creating perf cut lines, and other intuitive features.

VersaWorks 6

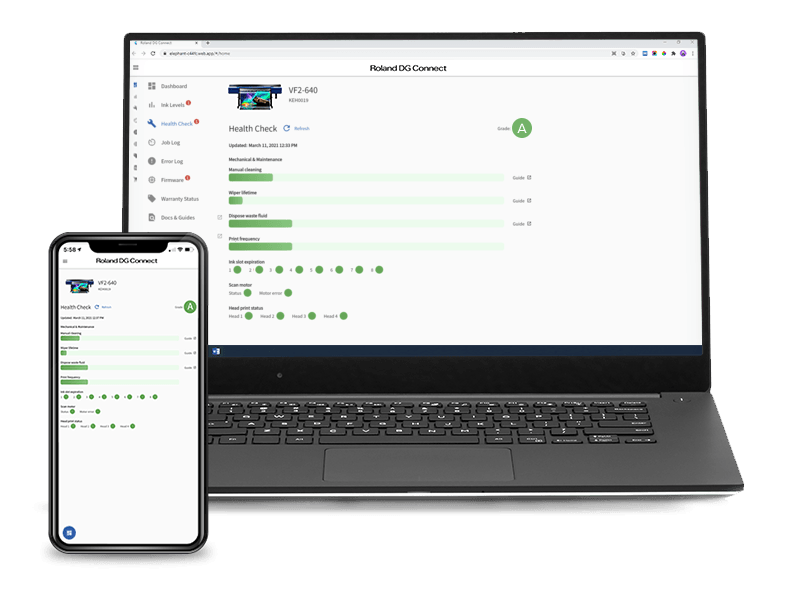

Roland DG Connect App
For Everything Creative

Reduce downtime and improve work efficiency with a machine monitoring assistant that helps you gain a detailed understanding of your entire print operation while keeping your device running at optimum performance.

FIND OUT MORE

Built to Build Your Business

Multi-award winning TrueVIS technologies provide head-turning color and image quality to give you an edge over your competition. Engineered in Japan with uncompromising attention to detail and ever-lasting machine reliability, the VF2-640 was designed for passionate professionals like you, who need quality, dependability and versatility to build new levels of business success.

Discover TrueVIS

Roland DGA’s Industry-Leading Warranty and Support

For over 35 years, Roland DG has provided industry professionals with the most advanced and reliable machines, backed by unmatched customer service and technical support. The VF2 is supplied with a Two-Year Trouble-Free Warranty to give you added peace-of-mind and machine support.

Additional Information

Expand All | Collapse All

Sample Request

Specifications

TrueVIS VF2-640

		VF2-640
Printing method		Piezo ink-jet method
Media	Width	10.2 to 64 in. (259 to 1,625 mm)
	Thickness	Max. 1.0 mm (39 mil) with liner
	Roll outer diameter	8.3 in. (Max. 210 mm)
	Roll weight	88 lb. (Max. 40 kg)
	Core diameter (*1)	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing width (*2)		63.6 in. (Max. 1,615 mm)
Ink	Type	TR2 INK 500 ml pouch (only white 250 ml)
Ink	Colors	8 colors (Cyan, Magenta, Yellow, Black, Light Black, Orange, Green, and White) 8 colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, and White) 8 colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Light Black, and Orange) 7 colors (Cyan, Magenta, Yellow, Black, Light Black, Orange and Green) 4 colors (Cyan, Magenta, Yellow, and Black)
Printing resolution (dots per inch)		Max. 1,200 dpi
Distance accuracy (*3)		Error of less than ±0.3% of distance traveled or ±0.3 mm (±11.8 mil), whichever is greater.
Media heating system (*4)		Print heater set temperature: 86 to 112°F (30 to 45°C) Dryer set temperature: 86 to 122°F (30 to 50°C)
Connectivity		Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function		Automatic sleep feature
Power requirements		AC 100 to 120 V ±10%, 8.0 A, 50/60 Hz or AC 220 to 240 V ±10%, 4.1 A, 50/60 Hz
Power consumption	During operation	Approx. 1,090 W
Power consumption	Sleep mode	40 W
Acoustic noise level	During operation	63 dB (A) or less
Acoustic noise level	During standby	53 dB (A) or less
Dimensions (with stand)		116 [W] × 28.8 [D] × 51.6 [H] in. (2,945 (W) × 730 (D) × 1,310 (H) mm)
Weight (with stand)		440.9 lb. (200 kg)
Environment	During operation	Temperature: 68 to 90°F (20 to 32°C), humidity: 35 to 80% RH (no condensation)
Environment	Not operating	Temperature: 41 to 104°F (5 to 40°C), Humidity: 20 to 80% RH (no condensation)
Included items		Dedicated stands, power cord, media holders, replacement blade for separating knife, cleaning liquid, drain bottle, user's manual, etc.

*1 The media holders of this machine are designed to be used exclusively with media that has a paper tube (core) with an inner diameter of 3 inches. To use 2-inch media, the optional media flanges are required.
*2 The length of printing is subject to the limitations of the application software.
*3
- Media type: Media specified by Roland DG Corporation
- Temperature: 77°F (25°C), humidity: 50%RH
- Roll media must be loaded correctly.
- Excluding expansion/contraction of the media
- Not assured when the print heater or dryer is used.
- Assumes all correction and adjustment functions of the machine have been used properly.
- Print travel: 39.4 in. (1 m)
*4
- Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
- Depending on the ambient temperature and the media width, the set temperature may not be reached.

Brochure

Download Your VF2-640 Brochure

Get your digital guide to all the features, applications, benefits and specifications of the Wide Color Gamut Printer.

Download Brochure
