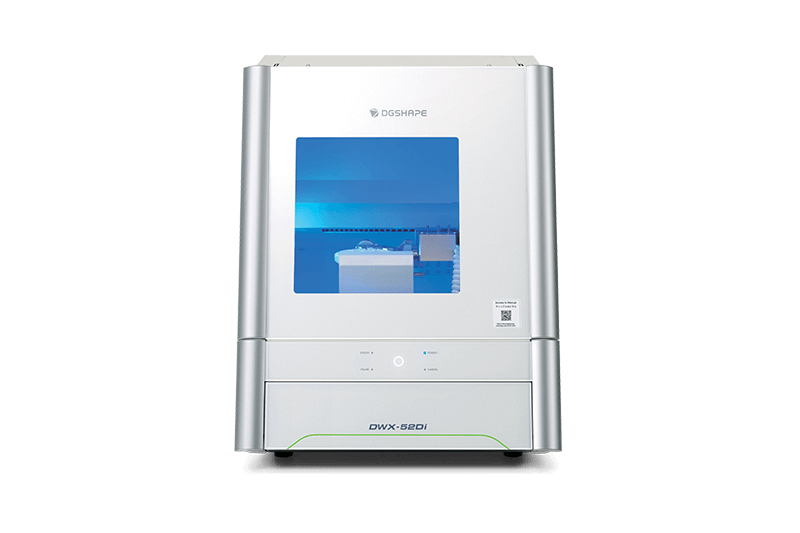

DWX-52Di 5-Axis Dental Milling Machine

Contact Dealer for Pricing

View All Promos

Available in select Central and South America countries only.
Apply

The industry's best-selling dental mill is now even more affordable for dental labs, clinicians, in-house labs, and DSO's who are looking to expand their current production capacity and capabilities. Get the meticulous build quality, precision, and milling efficiency of DWX-52Di technology in a fixed clamp model without the added accessories and with increased unit capacity per disk.

Request a Dealer

DWX-52D	DWX-52Di
MSRP $25,995 US	MSRP Contact Dealer for Pricing
MATERIAL ADAPTER COMPATIBILITY STANDARD C-CLAMP (ZMA-52D) STANDARD (ZMA-52DC) 6-PIN BLOCK (ZV-52D)	MATERIAL ADAPTER COMPATIBILITY FIXED C-CLAMP
ADDITIONAL MATERIALS VARIOUS TOOLS AND HOLDERS HOSES AND ADAPTERS REGULATOR DWINDEX2 SOFTWARE 6 STANDARD MATERIAL ADAPTERS (ZMA-52DC) CLEANING TOOL MATERIAL DISC RACK HOLDER	ADDITIONAL MATERIALS VARIOUS TOOLS AND HOLDERS HOSES AND ADAPTERS REGULATOR
MATERIALS ZIRCONIA WAX PMMA COMPOSITE RESIN PEEK GYPSUM GLASS FIBER REINFORCED RESIN CHROME COBALT SINTERED METAL
OPERATING SPEED 6 to 1,800 mm/min. (0.24 to 70.9 in./min.)

Easy and Precise Open Architecture Restoration on a Wide Range of Applications

Mill the following applications with accurate, intuitive, and simplified production of the DWX-52Di that doesn't tie you to specific software or proprietary control source- giving you the freedom to work with your choice of the latest CAD/CAM software, scanners and materials.

Temporary/provisional crowns, as well as permanent crowns, producing zirconia and composite prostheses with very similar replication.

Bridge replacements in single or multiple units, of any size, from a selection of compatible materials.

Indirect inlays (intracoronal fillings) and onlays (“onlays” or cúspides fillings) from zirconia, composites and other popular materials.

Numerous abutments and partial denture brackets, including TiBase-fused, glue-based abutments, etc.

Different copings for molding or porcelain applications.

Front denture restorations such as zirconia veneers, polymethylmethacrylate (PMMA), composite resin materials and more.

Additional Features

	Simplified Operation An intuitive Virtual Machine Panel (VPanel) automatically swaps out used burs with the intelligent Tool Control (ITC) function, conducts machine diagnostics, and provides automatic calibration.
	User Replaceable Spindle The spindle that can be replaced in a matter of minutes, without needing to call out a technician- no special tools, testing or training required
	52Di Model C-Clamp Adapter Designed for more economical milling of up to 31 single units per material disc

	Increased Milling Capabilities Continuous milling with a 15-station Automatic Tool Changer (ATC) and auto-adjusted air pressure that automatically switches to the right air volume in response to CAM software data
	5-Axis Milling Produce exceptional results with a ball screw-driven system- simultaneously rotate and tilts discs for deep undercuts to mill large arch restorations with ease
	Clean and Efficient Milling An auto-start dust collection system maintains a clean machine while a built-in ionizer greatly reduces static when milling PMMA

Garantía de Dos Años Libres de Problemas

Warranty and Support

DGSHAPE by Roland DGA ensures that your machine is always up-and-running with a two-ear warranty plus support from a network of dedicated dealers and certified service engineers. From our helpful customer support team to an abundance of training and education, Roland DGA cares about your customer needs before and after machine purchase.

*Requires product registration, only valid in Latin America regions

Peace-of-Mind Reliability and Support

Roland DGA has been at the forefront of advanced machine manufacturing for over 40 years, providing practical and reliable technology with unmatched service and support.

DGSHAPE by Roland DGA further delivers on this reliability promise but also improves user experience, making it incredibly easy for labs to produce high quality, cost effective dental prosthetics while improving workflow efficiencies.

Additional information

Expand All | Collapse All

Specifications

DWX-52Di

Material		Zirconia, Wax, Polymethylmethacrylate (PMMA), Composite resin, Gypsum, glass fiber-reinforced resin, Chrome Cobalt sintered metal
Spindle speed		30,000 rpm
Rotary axis	A	±360°
	B	±30°
Compatible air		0.2 MPa
Operating Noise	During operation	70 dB(A) or less (when not cutting)
	During Standby	45 dB(A) or less
External Dimensions	Width, Depth, Height	19.5 in x 26.0 in x 23.6 in
Weight		147.7 lbs. (67 kg)
Attachable Bar		Shank 4 mm (diameter), 40-55 mm (length)
Loadable Workplace		Step Section: 98.5 mm (diameter), 10 mm height; Body Section: Max height 60 mm
