Texart™ RT-640M Dye-Sublimation Multi-Function Printer
If you’re looking to start an “all-in-one” custom sign, graphics, décor and apparel business, the multi-function Texart RT-640M is the dye-sublimation printer for you. Intelligent, affordable and versatile, it offers outstanding graphic results and gives you the freedom to print onto transfer paper as well as printing direct-to-fabric.

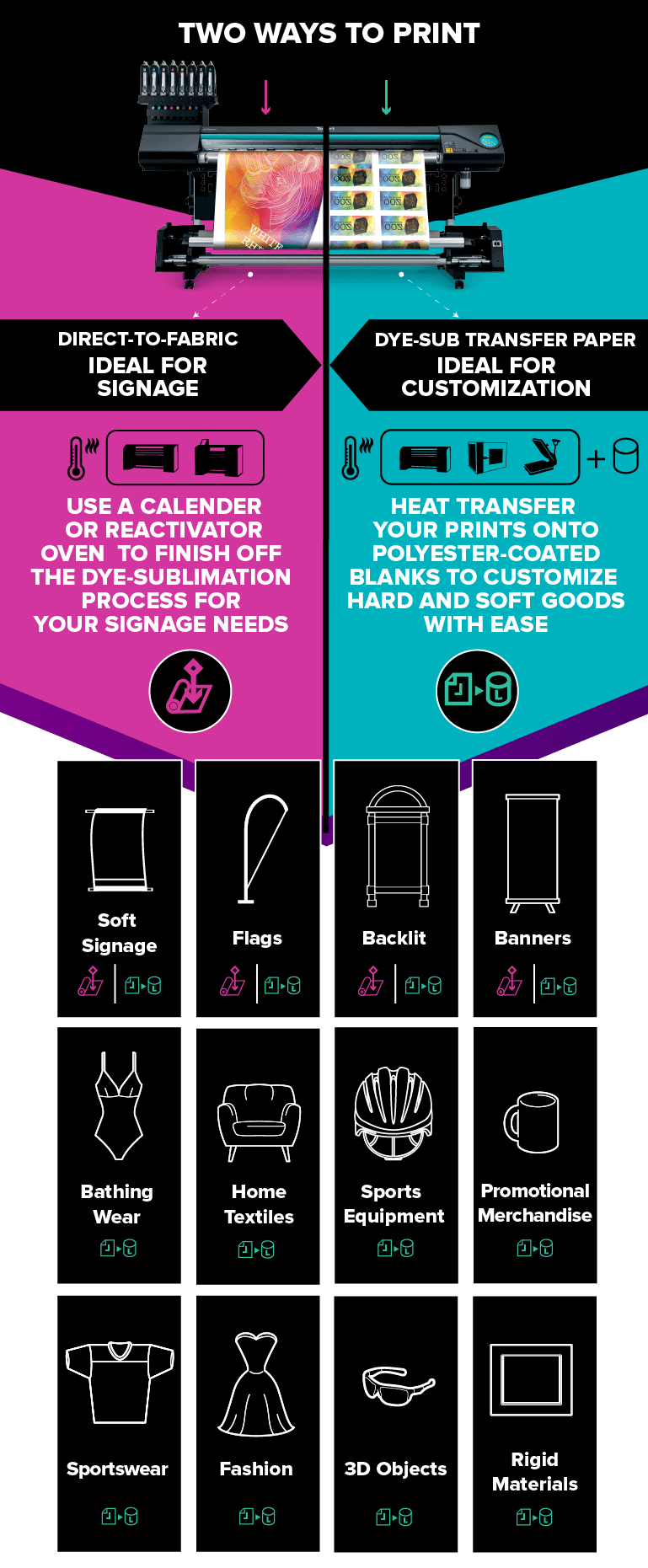

Multi-Function for Simpler Sublimation
and Expanded Applications
The Texart RT-640M simplifies dye-sublimation production for soft-signage and textiles with a direct-to-fabric print option. It also maintains the media versatility of printing to transfer paper for rigid sign, merchandise, and hard surface customization. The following items showcase some of the hundreds of application opportunities that the RT-640M offers.
Includes Ergosoft Roland DG Edition 3 –Powerfully Easy RIP Software
With print modes for most common applications, ErgoSoft Roland DG Edition 3 is one of the premium RIP softwares for textile and dye-sublimation. It features standard RIP tools as well as advanced production tools to effortlessly manage your print output.
- Aurelon PDF engine with 64-bit native support to maximize performance
- RIP up to 8-jobs simultaneously, unlimited hot folders and job cost estimation
- Work in print environments and print modes for the most common dye-sublimation fabrics and media
- Step & repeat and tiling features for advanced media saving and efficiency
- Job cost calculation and other advanced production features
- Superior color management with color replacement and extensive Colorbooks swatches
Tension Weight Take-Up
Roland DG Bulk Ink-Switching System
Super Sharp Images with Long-Lasting Color
Multi-Function SBL3 Ink
Optimized Print Heads
Fine Media Options
Fluorescent Inks Available
Roland DG’s Industry-Leading Warranty and Support
For over 30 years, Roland DG has provided the most advanced and reliable machines, backed by unmatched customer service and technical support.
The Texart RT-640M is also supplied with a Two-Year Trouble-Free Warranty with an option to extend your warranty for three more years for a total of five-years peace-of-mind coverage.
Request a Call
|Printing Technology||Piezoelectric inkjet|
|Width||259 to 1625 mm (10.2 to 64 in.)|
|Thickness||Max. 1 mm (39 mil)
|Roll outer diameter||Max. 210 mm (8.3 in.)|
|Roll weight||Max. 40 kg (88 lb)|
|Core diameter*1||76.2 mm (3 in.) or 50.8 mm (2 in.)|
|Printing width*2||Max. 1615 mm (63.6 in.)|
|Ink||Type||Texart ink, 1000 cc pouch|
|Colors||4 colors (Cyan, Magenta, Yellow, Black)
8 colors (Cyan, Magenta, Yellow, Black, Light Cyan, Light Magenta, Orange, Violet)
8 colors Fluorescent (Cyan, Magenta, Yellow, Black, Orange, Violet, Fluorescent Yellow, Fluorescent Pink)
|Print resolution (dots per inch)||Max. 1440 dpi|
|Distance accuracy*3||Error of less than ±0.3% of distance travelled, or ±0.3 mm, whichever is greater|
|Connectivity||Ethernet (10BASE-T/100BASE-TX, automatic switching)|
|Power-saving function||Automatic sleep feature|
|Power requirements||AC 100 to 240 V ±10%, 1.5 A, 50/60 Hz|
|Power consumption||During operation||Approx. 140 W|
|Sleep mode||Approx. 31 W|
|Acoustic noise level||During operation||62 dB (A) or less|
|During standby||49 dB (A) or less|
|Dimensions (with stand)||2650 (W) x 795 (D) x 1600 (H) mm (104.4 x 31.3 x 63 in.)|
|Weight (with stand)||160 kg (353 lb)|
|Environment||Power on||Temperature: 18 to 25°C (64.4 to 77°F), humidity: 35 to 65% RH (no condensation)|
|Power off||Temperature: 15 to 30°C (59 to 86°F), humidity: 20 to 80% RH (no condensation)|
|Included items||RIP software, take-up system, exclusive stands, power cable, media clamps, media holder, User's Manual, etc.|
|Software||ErgoSoft Roland Edition 2|
*1 The media holder for this machine is exclusively designed for media rolls with a paper tube measuring 76.2 mm (3 in.) in diameter. To use 50.8 mm (2in.) media rolls, the optional media flanges are required.
*2 The length of the production run is subject to the limitations of the program.
*3 Media type: Media specified by Roland DG Corporation. Temperature: 25°C (77°F), humidity: 50%. Roll media must be loaded correctly. Excluding expansion / contraction of the media. All corrections or adjustment functions of this machine have been made properly. Print travel: 1 m.
Specifications, designs and dimensions listed may be subject to change without notice.
|ErgoSoft Roland Edition 2 System Requirements|
|Operating system||Windows® 10 (32/64-bit)
Windows® 8/8.1 (32/64-bit)
Windows® 7 Professional (32/64-bit)
Windows® 7 Home (32/64-bit)
|CPU||Intel® Core™ i3; 3 GHz or faster recommended|
|RAM||8GB or more recommended|
|Video card and monitor||Screen resolution of 1600 x 900 or higher recommended|
|Free disk space (HDD/SSD)||100 GB or more recommended|
