DGXPRESS ER-642 Eco-solvent Printer | Roland DGA
ER-642 Mobile Banner

Brilliant Quality, Amazing Speed

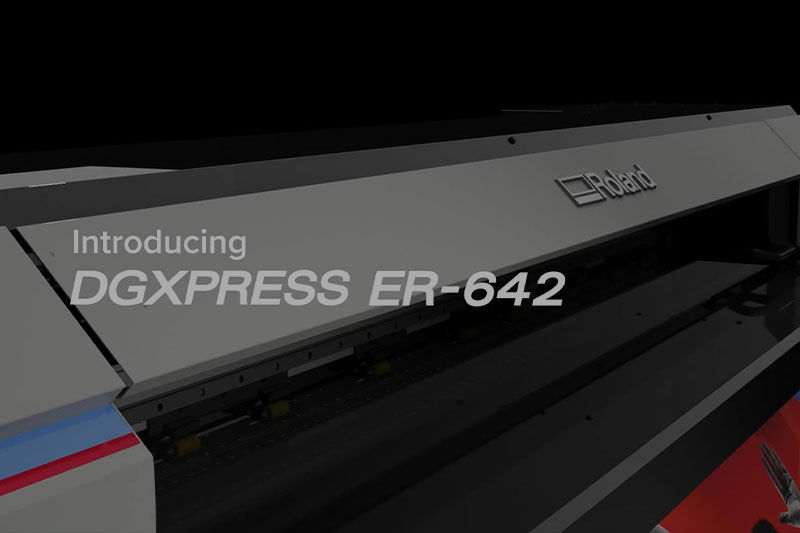

DGXPRESSNEW ER-642 Eco-solvent Printer

  • Inquire for Pricing. Available only in Central and South America.

Outpace your competitors with the latest eco-solvent print solution in the DGXPRESS range. The ER-642 brings all the quality and reliability of Roland DG, with exceptional print speeds. Thanks to its staggered heads and dual CMYK ink configuration, you can achieve productivity that will accelerate your business.
High Speed Print Heads

High Speed Printing

DGXPRESS is the ideal solution for those who need professional, reliable equipment which can exceed the demands of a thriving economy. Every element of the DGXPRESS eco-solvent printing solution is meticulously refined to deliver high-speed output with healthy margins.

The newly developed high-speed data control technology maximizes the performance of the print heads achieving high- resolution output with fewer passes. With a two-pass print set-up, you can achieve speeds up to 249.7 ft.

ER-642 Exceptional Quality

Exceptional Quality

Devices in the DGXPRESS range have been precision- engineered to produce prints at high speeds without compromising on print quality.

Features such as VersaWorks' True Rich Color ensure the reproduction of vivid and accurate colors, even with only CMYK inks.

Professional and Fast Digital Print

With enhanced speed and Roland DG quality, you can produce a huge range of print products in record times.

Signs and Banners

High Performance Ink

Using the latest D-EA inks for high-performance and economical printing, you can get maximum speed with dual-CMYK. The cartridges are also paper-based to reduce environmental impact.





D-EA Eco-solvent inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.


High-performance Features


Simple Maintenance

The DGXPRESS ER-642 is designed to make it easy for users to replace parts and consumables. This ensures that downtime is kept to a minimum, even where access to the Roland DG service network is unavailable.


Integrated Take-up Unit

Robust, accurate and easy to use, the ER-642 is equipped with a take-up unit as standard to enable long unsupervised print runs.

  • Adjustable end-cap for various media tube lengths.
  • Quick loading with One-touch media holder.
  • Compatible with thin films and heavy canvas material.
Printer Dryer

Optional Extra Dryer

In addition to the standard heating system, an extended dryer and blower are available as an option to further accelerate ink drying. Winding up at high printing speeds can also be performed with greater peace of mind.

Comprobación de Estado de Roland DG Connect

Roland DG Connect App
For Everything Creative

Gain a detailed understanding of your entire print operation while keeping your device running at optimum performance with a user-friendly app specially designed to integrate seamlessly with your DGXPRESS ER-640. Reduce downtime and improve efficiency with a machine monitoring assistant that works in complete harmony with your device.

Comprobación de Estado de Roland DG Connect

Great Return on Investment

Affordable and powerful, the ER-642 can generate profits and pay for itself quickly.

Professional Color Management

Match your customers' color with ease thanks to advanced RIP features.

Efficient and Fluid Workflows

Produce your work, your way with flexible job-management features.

Mobile Cost Tracking

Track ink usage and more in real time with the Roland DG Connect mobile app.

Fast Set-up and Ease of Use

Plug in and start working immediately thanks to Roland DG’s user-friendly interface.

Included Color Profiles

Access a variety of high quality color profiles for exceptional print quality across a wide range of media types.


VersaWorks 6
Multifunctional RIP Suite

Besides its high-speed RIP functionality, VersaWorks 6 RIP includes a wide selection of productivity-boosting features:

  • HARLEQUIN RIP dual core engine and 64-bit native processing for enhanced speed and file handling.
  • Add cut lines directly in the RIP— change vector data into cut line data.
  • A variety of profiles designed for different types of application, enable high-quality print output without difficult settings.
  • Easy drag-and-drop interface allows you to quickly add jobs to the print queue.
  • Integrated spot color libraries include Pantone and Roland DG Color libraries.
  • Intuitive tiling, cropping, nesting and other features that have made VersaWorks the world’s favorite software RIP.

Precise Print-then-cut

VersaWorks 6 RIP software allows users to easily add crop and registration marks to print files.

This makes it possible to precisely cut graphics using a separate plotter, like Roland DG's CAMM-1 GR2 series.


Your High-Value Choice

With the release of the DGXPRESS range of wide-format printers, you can now produce professional quality prints at an attractive price.

2 Year Trouble-Free Warranty
2 Year Trouble-Free Warranty

Why Choose Roland DG?

Roland DG has provided industry professionals with the highest quality products for more than 40 years, backed by unmatched customer service and support. For even greater peace of mind, every ER-642 device is supplied with a Two-Year Trouble-Free Warranty.*

* Registration within 60 days of purchase and exclusive, continuous use of Roland DG approved inks is required to qualify for the second year of warranty coverage.

Additional Information

Expand All | Collapse All
Printing Method Piezo ink-jet method
Media Width 10.2 to 64 in. (259 to 1,625 mm)
Thickness Max. 39.3 mil (1.0 mm) with liner
Roll outer diameter Max. 9.8 in. (250 mm)
Roll weight Max. 99 lb. (45 kg)
Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing width 1 Max. 63.5 in. (1,615 mm)
Types Eco-Solvent Ink (D-EA) 500 ml cartridge
Colors Four colors (Cyan, Magenta, Yellow, and Black)
Printing Resolution (dpi) Max. 1,200 dpi
Media heating system 2 Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving Function Automatic sleep feature
Power Requirements 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A
Power Consumption During operation Approx. 1,180 W
Sleep mode Approx. 50 W
Acoustic Noise Level Print with Vacuum 66 dB (A) or less
During Standby 53 dB (A) or less
Dimensions (width x depth x height) 113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm)
Weight 415 lb. (188 kg)
Environment During operation 3 Temperature : 68 to 89.6 °F (20 to 32 °C) , humidity:35 to 80 % RH (no condensation)
Not operating Temperature : 41 to 104 °F (5 to 40 °C) , humidity:20 to 80 % RH (no condensation)
Included items Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.

Download Your ER-642 Datasheet

Get your digital guide to all the features, applications, benefits and specifications of the Eco-solvent Printer.

Download Datasheet
