Discover New Applications, Customers, and Profit with an All-in-One Flexible and Rigid Printing Solution
NEW VersaUV LEC2 S-Series UV Flatbed Printers
* U.S. only. For Canada, Latin America and Caribbean pricing, please contact an Authorized Roland DGA Dealer in your area.
** For 60 months, OAC.Financial Services
Imagine all the products you’re going to print on with a VersaUV LEC2 S-Series printer. Customize signs, merchandise, packaging, displays, and so many more applications with an easy-to-use, multi-functional device that transforms your business output overnight with an almost unlimited range of custom graphics possibilities.
- Discover new revenue streams, target new customers, and increase profitability with a machine that offers both flexible and rigid printing
- Advanced UV print features combined with a height clearance of up-to 7.87” offer high-end print results on thousands of products
- Get exceptional quality UV print results with double CMYK or CMYK with Orange, Red, White, Gloss and Primer configurations
Speed, Simplicity and On-Demand Flexibility
Available in a choice of different print widths and bed set-ups, LEC2 S-Series printers are unique devices that provide the best of both worlds with direct-to-product customization plus direct printing on flexible and rigid materials that are instantly ready for finishing and installation.
It’s the perfect on-demand printing solution for starting in customization or supporting your current print operation— offering quick-turnaround on traditional print jobs and easy production on a huge portfolio of products and merchandise.
Advanced ECO-UV Inks
with Detailed Ink Configurations
New ECO-UV (EUV5) ink is cost-effective UV ink that provides highly durable ink results with superior scratch and chemical resistance— offering major print benefits to make your output stand out against your competitors.
LEC2 S-Series printers offer up-to 8 different ink configurations to suit your quality, media, and finishing needs. Print dual CMYK for increased productivity, or CMYK with optional Red, White, Gloss and Primer.
Finish your prints with Gloss ink textures and simulated embossing for premium graphic products that command higher prices.
Precisely apply Primer ink to flexible or rigid media for improved print adhesion and media compatibility.
Print high-opacity White ink highlights on a variety of media or add sub-coats on dark or transparent materials.
Red & Orange Ink
Red and Orange inks to expand your color gamut to add rich, vibrant color to your prints.
Friendly to the Environment, Safe for You
EUV5 inks come with GREENGUARD Gold certification, ensuring they are free from volatile organic compounds (VOCs) once cured, making them ideal for indoor graphics applications.
Experience the Difference of Orange, Red and True Rich Color
The True Rich Color preset in VersaWorks 6 RIP software combines with new Orange and Red ink options to broaden your color gamut and reach new areas of oranges, reds, yellows, and other challenging hues.
In addition to new Orange and Red process colors in the Roland DG Color Library, specific Pantone® and DIC colors that were previously difficult to match can now be achieved. This allows you to reproduce specific company brand colors and better fulfill the print expectations of your clients.
User-Focused Machine Features for Safe and Versatile Production
Impressive Height and Weight Capabilities
Offering extraordinary application versatility— print on signs, panels, boards and products up-to 7.87 inches in height and 2373 lb. in weight.
Safety Control Features

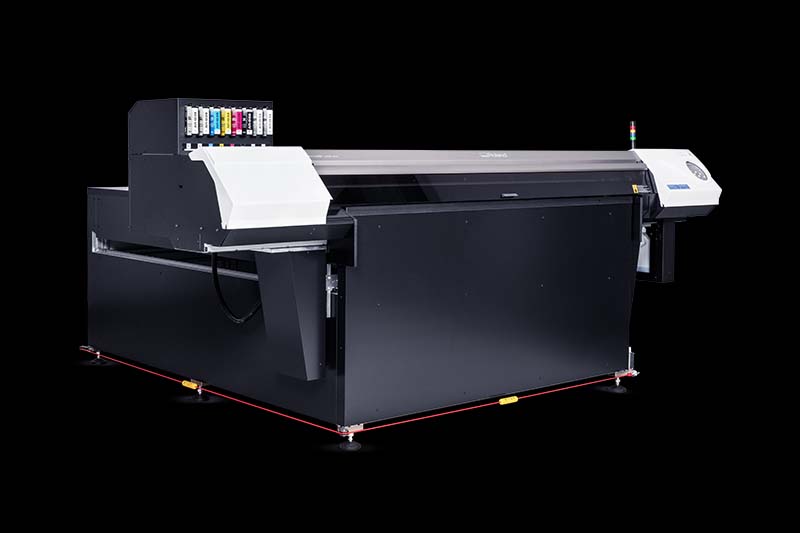

An emergency stop perimeter around base (and on the side of the device) safeguards operators in the busiest of production environments. Plus, there is a signal beacon with variable alerts to clearly highlight the printer status.
Low-Temperature Adjustable UV-LED lamps
Adjust the UV-LED lamp intensity from VersaWorks 6 RIP software so that Gloss, Primer and White can be used as an adhesive layer before a secondary process to apply foil before curing.
Choose an LEC2 S-Series Printer
That Fits Your Business

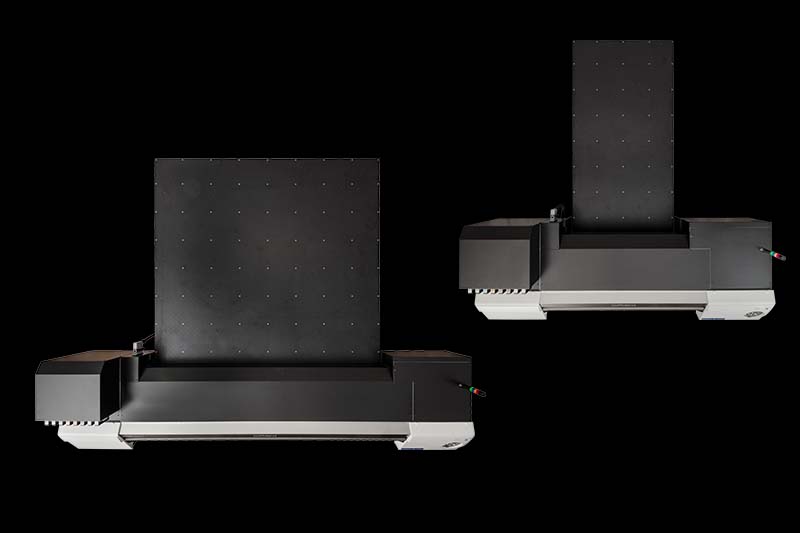

The LEC2 S-Series offers machine options that reflect the products and media choices you want to print on. We provide two different carriage sizes and six different bed size options, including our full-sized model that prints on full-boards and an optional belt-driven model that solves space issues and prints roll-to-roll as well as rigid.
|An intuitive distance print mode delivers brilliant print consistency on objects that are flat, irregular, or curved.*|
|The vacuum bed operates quietly and features a reverse blow setting that removes material from the bed for clean and efficient production.|
|The latest DX7 print heads with 8 channels, 180 channels per nozzle, and variable droplet technology, offer consistently great print quality.|
|Create an easy and safe operator area with a separate control tower with touch panel controls.|
* Test printing is always recommended to determine adhesion and coverage on irregular, curved objects, and unique materials.
Warranty and Support
We build long-lasting, high-performance devices with unmatched customer support plus the added assurance of a Two-Year Trouble-Free Warranty.
* Registration within 60 days of purchase and exclusive, continuous use of Roland DG approved inks is required to qualify for the second year of warranty coverage.
Included VersaWorks 6
The latest edition offers powerful new 64-bit processing and RIP capabilities, plus easy, nesting, cropping, tiling and other features from the world’s most popular RIP software.
Request a Call
|Printing method||Piezo ink-jet|
|Acceptable Media||Width||30 in. (762 mm)||64 in. (1625 mm)||64 in. (1625 mm)||64 in. (1625 mm)|
|Height||7.87 in. (200 mm)|
|Weight Capacity||20/lb.ft2 (100 kg / m2)||20/lb.ft2 (100 kg / m2)||20/lb.ft2 (100 kg / m2)||20/lb.ft2 (100 kg / m2)|
32 (W) x 82 (D) in.
[820 (W) x 2085 (D) mm]
67 (W) x 82 (D) in.
[1696 (W) x 2090 (D) mm]
67 (W) x 122 (D) in.
[1696 (W) x 3090 (D) mm]
67 (W) x 150 (D) in.
[1696 (W) x 3818 (D) mm]
29 (W) x 59 (L) x 7.87 (H) in.
[736 (W) x 1500 (L) x 200 (H) mm]
63.6 (W) x 59 (L) x 7.87 (H) in.
[1615 (W) x 1500 (L) x 200 (H) mm]
63.6 (W) x 98 (L) x 7.87 (H) in.
[1615 (W) x 2500 (L) x 200(H) mm]
63.6 (W) x 124 (L) x 7.87 (H) in.
[1615 (W) x 3148 (L) x 200(H) mm]
|Ink cartridges||Type||Roland ECO-UV EUV-5|
|Colors||Cyan, Magenta, Yellow, Black, Orange, Red, White, Gloss, Primer|
|Ink configurations||CMYKCMYK, CMYkWhWhGlGl, CMYkWhWhGlPr, CMYKOrReWhWh, CMYKOrReWhPr, CMYKOrReWhGl|
|Vacuum system||Vacuum zones||1 Pump||1 Pump||2 Pump||3 Pump|
|Printing resolution (dpi)||Max. 1,440 dpi|
|Movement method||High resolution stepping motor|
|Distance accuracy *2||Error of less than ± 0.3% of distance travelled, or ± 0.3 mm, whichever is greater|
|Horizontal repeat accuracy *3||± 0.01mm|
|Output modes||Continuous, unload, return to origin, layered|
|Media height setting||Manual, auto sensor|
|Surface control||Manual, auto sensor|
|Control interface||7" Color LCD touch screen on included Control Tower|
|Power saving function||Automatic sleep feature|
|Power requirements||220V 16A 2P+E||220V 16A 2P+E||220V 16A 2P+E||220V 16A 2P+E|
|Power consumption||Print with vacuum||Max. 2.5 kW||Max. 2.2 kW||Max. 2.6 kW||Max. 3.5 kW|
|Sleep mode||150 W|
|Acoustic noise level||Print with vacuum||70 dB (A) or less|
|During standby||40 dB (A) or less|
|Printer unit Dimensions||
77(W) x 85 (D) x 70 (H) in.
[1945(W) x 2152 (D) x 1780 (H) mm]
111(W) x 85 (D) x 70 (H) in.
[2819 (W) x 2152 (D) x 1780 (H) mm]
111(W) x 124 (D) x 70 (H) in.
[2819 (W) x 3152 (D) x 1780 (H) mm]
111(W) x 153 (D) x 70 (H) in.
[2819 (W) x 3880 (D) x 1780 (H) mm]
|Control tower||530 (W) x 530 (D) x 1080 (H) mm|
882 + 110.23 lbs (400 + 50 kg)
1323 + 110.23 lbs (600 + 50 kg)
1764 + 110.23 lbs (800 + 50 kg)
2205 + 110.23 lbs (1000 + 50 kg)
|Weight distribution||6 points - 6 feet (80 mm diameter)||8 points - 8 feet (80 mm diameter)||10 points - 10 feet (80 mm diameter)|
|Environment||Power on||Temperature: 20 to 32 ˚C (68 to 90 ˚F) (22 ˚C [72 ˚F] or more recommended), Relative humidity: 35 to 80% (no condensation)|
|Power off||Temperature: 5 to 40 ˚C (41 to 104 ˚F), Relative humidity: 20 to 80% (no condensation)|
|Included accessories||RIP Software, User manual, Power cable, Cleaning kit, Installation toolbox|
|RIP Software||VersaWorks 6|
|Optional Air Purifier||BOFA PrintPRO Filtration|
118 (W) x 59 (D) x 71 (H) in.
[3000 (W) x 1500 (D) x 1800 (H) mm]
134 (W) x 79 (D) x 71 (H) in.
[3400 (W) x 2000 (D) x 1800 (H) mm]
158 (W) x 79 (D) x 71 (H) in.
[4000 (W) x 2000 (D) x 1800 (H) mm]
158 (W) x 79 (D) x 71 (H) in.
[4000 (W) x 2000 (D) x 1800 (H) mm]
|Shipping Weight (Net + Pallet)||430 kg Printer + 80 Kg Tower and wooden box + Pallet 120 kg||630 kg Printer + 80 kg Tower and Wooden Box + Pallet 160 kg||800 kg Printer + 80 kg Tower and Wooden Box + Pallet 210 kg||1000 kg Printer + 80 kg Tower and Wooden Box + Pallet 210 kg|
- Specifications, designs and dimensions listed may be subject to change without notice.
- *1 Maximum printable width with margins set to minimum. Some media/objects may be less. Please check prior to printing.
- *2 With Roland PET film, print travel: 1 m. Temperature: 25°C (77°F),relative humidity: 50%
- *3 The following conditions must be met: Media type: Media specified by Roland DG Corp. Side margins: 25 mm or more for both the left and right margins. Front margin: 35 mm or more. Excluding expansion/contraction of the media Range for assured repetition accuracy length 3000 mm
|Operating System||Windows® 10 (32/64-bit), Windows® 8.1 (32/64-bit), Windows® 7 Ultimate / Professional (32/64-bit)|
|CPU||Intel® Core™ 2 Duo, 2.0 GHz or faster recommended|
|RAM||2 GB or more recommended|
|Video card and monitor||A resolution of 1,280 x 1,024 or more|
|Free hard-disk space||40 GB or more recommended|
|Hard-disk file system||NTFS format|
|Other||Internet connection recommended|
