Brilliant Quality, Amazing Speed
DGXPRESSNEW ER Series Eco-Solvent Printer
-
MSRP
ER-641
Inquire for Pricing. Available only in Central and South America.
ER-642
Inquire for Pricing. Available only in Central and South America.
Outpace your competitors with the latest eco-solvent print solutions in the DGXPRESS range. Explore the ER-642 and ER-641 roll-to-roll printers, featuring Roland DG's dependable performance. These printers offer efficient productivity, superior print clarity, and are priced to meet your budget needs.
- High-speed printing for maximum productivity
- Vivid and accurate colors
- Broad media compatibility
High-Speed Print Solutions
Take-up Unit Included
Dryer Unit *
User-friendly Operation
Low Investment
Take-up Unit Included Dryer Unit *
User-friendly Operation
Professional and Fast Digital Print
With enhanced speed and Roland DG quality, you can produce a huge range of print products in record times.
Everything You Need to Succeed
Produce work quickly and reliably with DGXPRESS print hardware.
Power your workflow with our most intelligent engine yet.
Get stunning results every time with economical eco-solvent ink.
Keep your business going with unparalleled support.
High Speed Printing
DGXPRESS is the ideal solution for those who need professional, reliable equipment which can exceed the demands of a thriving economy. Every element of the DGXPRESS eco-solvent printing solution is meticulously refined to deliver high-speed output with healthy margins.
The newly developed high-speed data control technology maximizes the performance of the printheads, achieving high- resolution output with fewer passes. With a two-pass print set-up, you can achieve speeds up to 249.7 ft.
Exceptional Quality
Devices in the DGXPRESS range have been precision-engineered to produce prints at high speeds without compromising on print quality.
Features such as VersaWorks' True Rich Color ensure the reproduction of vivid and accurate colors, even with only CMYK inks.
High Performance Ink
Using the latest D-EA inks for high-performance and economical printing, you can get maximum speed with dual-CMYK. The cartridges are also paper-based to reduce environmental impact.
CMYK
GREENGUARD Gold
D-EA Eco-solvent inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.

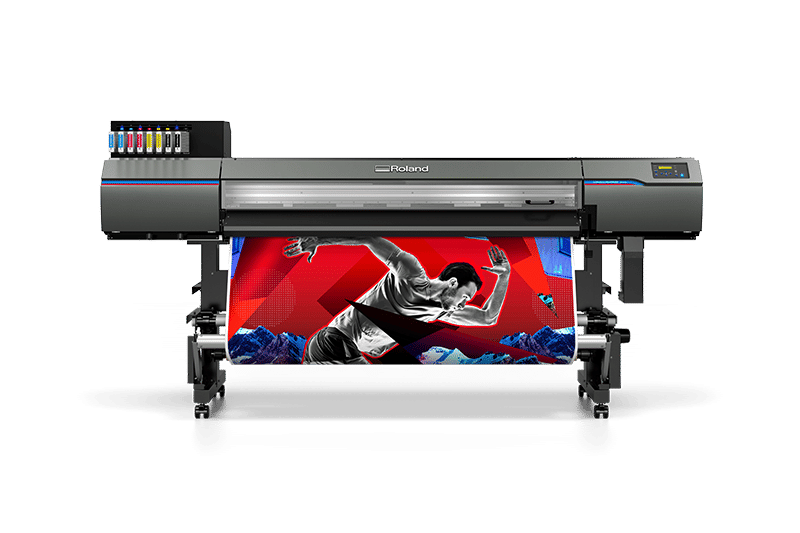

DGXPRESS ER-642 High-performance Features
Simple Maintenance
The DGXPRESS ER-642 is designed to make it easy for users to replace parts and consumables. This ensures that downtime is kept to a minimum, even where access to the Roland DG service network is unavailable.
Integrated Take-up Unit
Robust, accurate and easy to use, the ER-642 is equipped with a take-up unit as standard to enable long unsupervised print runs.
Optional Dryer Unit
In addition to the standard heating system, an extended dryer and blower are available as an option to further accelerate ink drying. Winding up at high printing speeds can also be performed with greater peace of mind.
DGXPRESS ER-641 Professional Features
Low Investment
Achieve a return on your investment even faster with the DGXPRESS ER-641. With precision-engineered efficiency and design know-how accumulated over many years, these devices are also cheap to run, lowering the cost of ownership.
Superior Output
Achieve excellent colour reproduction and high-resolution output with fewer passes thanks to a newly developed large print head capable of ejecting finer ink droplets at higher densities.
Print with Less Downtime
Replace caps, wipers, wiper cleaner, and flushing sponge around the printheads quickly and easily, without the need for a service engineer, resulting in significantly reduced downtime. The nozzle mask function allows you to keep printing even if a nozzle is missing from the head, so your work doesn't need to stop.
VersaWorks 6
Multifunctional RIP Suite
Besides its high-speed RIP functionality, VersaWorks 6 RIP includes a wide selection of productivity-boosting features:
- A range of built-in color-matching functions including color charts, finders and multi-device color calibration.
- The Job Assistant lets you easily draw and edit cut line settings.
- The Job Variation setting quickly identifies the best print settings for your customers' needs.
Key Benefits
Affordable and powerful, these products can generate profits and pay for themselves quickly.
Match your customers' color with ease thanks to advanced RIP features.
Roland DG digital print solutions are available to fit any budget.
Make a safe investment with Roland DG’s world-renowned quality and reliability.
Produce your work, your way with flexible job-management features.
Track ink usage and more in real time with the Roland DG Connect mobile app.
Plug in and start working immediately thanks to Roland DG's user-friendly interface.
Access Roland DG's library of ICC profiles and find hundreds of profiles to match your needs.
Roland DG Connect App
For Everything Creative
Gain a detailed understanding of your entire print operation while keeping your device running at optimum performance with a user-friendly app specially designed to integrate seamlessly with your DGXPRESS ER-640. Reduce downtime and improve efficiency with a machine monitoring assistant that works in complete harmony with your device.
Precise Print-then-cut
VersaWorks 6 RIP software allows users to easily add crop and registration marks to print files.
This makes it possible to precisely cut graphics using a separate plotter, like Roland DG's CAMM-1 GR2 series.
Your High-Value Choice
With the release of the DGXPRESS range of wide-format printers, you can now produce professional quality prints at an attractive price.
Why Choose Roland DG?
Roland DG has provided industry professionals with the highest quality products for more than 40 years, backed by unmatched customer service and support. For even greater peace of mind, every ER Series device is supplied with a Two-Year Trouble-Free Warranty.*
* Registration within 60 days of purchase and exclusive, continuous use of Roland DG approved inks is required to qualify for the second year of warranty coverage.Additional Information
ER-641 Specifications
| Printing method | Piezo ink-jet method | ||||||
| Media | Width | 10.2 to 64 in. |
|||||
| Thickness |
Max. 39.3 mil (1.0 mm) with liner |
||||||
| Roll outer diameter | Max. 9.8 in. (250 mm) |
||||||
| Roll weight | Max. 99 lb. (45 kg) | ||||||
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | ||||||
| Printing width 1 | Max. 63.5 in. (1,615 mm) | ||||||
| Ink |
Type | Eco-Solvent Ink (D-EA) 500 ml cartridge | |||||
| Colors | Four colors (Cyan, Magenta, Yellow, and Black) | ||||||
| Printing resolution (dots per inch) | Max. 1,200 dpi | ||||||
| Media heating system 2 | Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C) | ||||||
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | ||||||
| Power-saving function | Automatic sleep feature | ||||||
| Power requirements | 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A | ||||||
| Power consumption | During operation | Approx. 1,180 W | |||||
| Sleep mode | Approx. 50 W | ||||||
| Acoustic noise level | During operation | 66 dB (A) or less | |||||
| During standby | 53 dB (A) or less | ||||||
| Dimensions (width x depth x height) | 113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm) | ||||||
| Weight | 415 lb. (188 kg) | ||||||
| Environment | During operation 3 | Temperature : 68 to 89.6 °F (20 to 32 °C) , humidity：35 to 80 % RH (no condensation) | |||||
| Not operating | Temperature : 41 to 104 °F (5 to 40 °C) , humidity：20 to 80 % RH (no condensation) | ||||||
| Included items | Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. | ||||||
- Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
- Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
ER-642 Specifications
| Printing Method | Piezo ink-jet method | |
| Media | Width | 10.2 to 64 in. (259 to 1,625 mm) |
| Thickness | Max. 39.3 mil (1.0 mm) with liner | |
| Roll outer diameter | Max. 9.8 in. (250 mm) | |
| Roll weight | Max. 99 lb. (45 kg) | |
| Core diameter | 3 in. (76.2 mm) or 2 in. (50.8 mm) | |
| Printing width 1 | Max. 63.5 in. (1,615 mm) | |
| Ink |
Types | Eco-Solvent Ink (D-EA) 500 ml cartridge |
| Colors | Four colors (Cyan, Magenta, Yellow, and Black) | |
| Printing Resolution (dpi) | Max. 1,200 dpi | |
| Media heating system 2 | Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C) | |
| Connectivity | Ethernet (100BASE-TX/1000BASE-T, automatic switching) | |
| Power-saving Function | Automatic sleep feature | |
| Power Requirements | 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A | |
| Power Consumption | During operation | Approx. 1,180 W |
| Sleep mode | Approx. 50 W | |
| Acoustic Noise Level | Print with Vacuum | 66 dB (A) or less |
| During Standby | 53 dB (A) or less | |
| Dimensions (width x depth x height) | 113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm) | |
| Weight | 415 lb. (188 kg) | |
| Environment | During operation 3 | Temperature : 68 to 89.6 °F (20 to 32 °C) , humidity：35 to 80 % RH (no condensation) |
| Not operating | Temperature : 41 to 104 °F (5 to 40 °C) , humidity：20 to 80 % RH (no condensation) | |
| Included items | Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc. | |
Datasheet
Download Your ER-642 Datasheet
Get your digital guide to all the features, applications, benefits and specifications of the ER-642.
Download Datasheet
Download Your ER-641 Datasheet
Get your digital guide to all the features, applications, benefits and specifications of the ER-641.
Download Datasheet
