Powerful Performance
at an Affordable Price

NEW VersaSTUDIO BF-16 Desktop UV Flatbed Printer

Inquire for Pricing. Available only in Central and South America.

Explore your creative and profit-making potential with the VersaSTUDIO BF-16, the new desktop UV flatbed printer from Roland DG.
‎

Designed for entrepreneurs, creators, artists, and producers, the BF-16 offers exceptional print quality and versatility with outstanding productivity and price.
Compact and affordable, it is the perfect partner for your new business.
The BF-16 makes entering the lucrative personalization market easy and affordable -- print directly onto cell phone cases, cosmetic packaging, fashion accessories, gifts, promotional items, and much more.

Welcome to a new world of creative possibilities!

Print vibrant graphics and detailed text directly on objects up to 3.54" high.

Rapid and efficient production with high-speed printing capabilities.

Small footprint allows for convenient placement on your desktop.

Priced for start-up businesses with low budgets and high profit potential.

Produce vivid, high-definition prints with precise, accurate color reproduction.

Intuitive interface and user-friendly RIP software for simple operation.

Infinite Possibilities

Print reliably on a wide variety of materials including plastic, paper, leather, and wood.

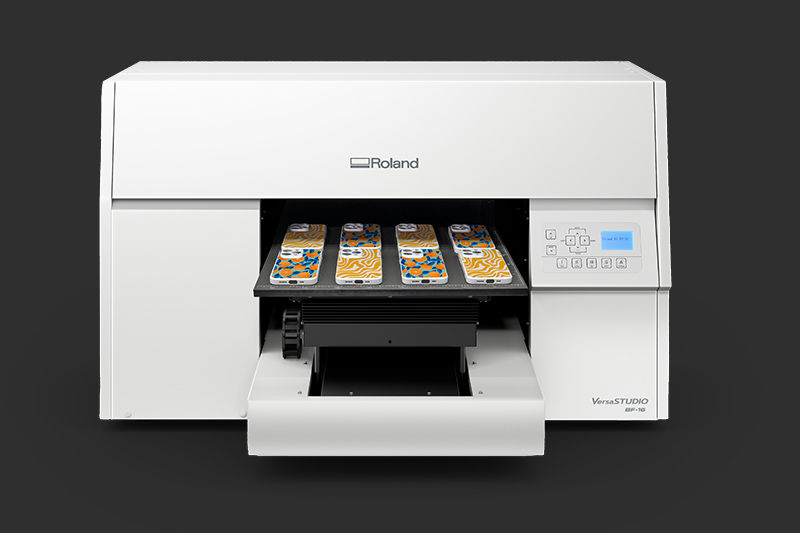

Powerful Productivity

The BF-16 is engineered to deliver high productivity with print speeds of up to 2.08 m²/h in standard mode. It also supports simultaneous White and CMYK printing and three-layer printing with White, CMYK, and Gloss.

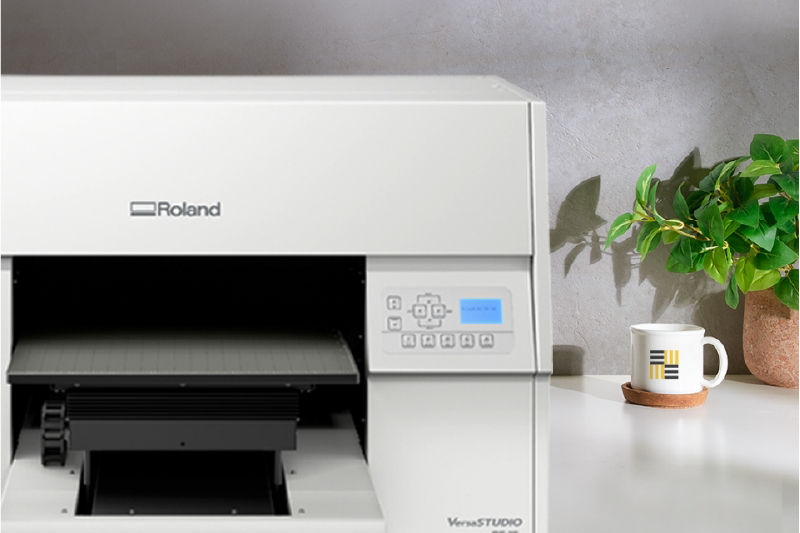

Compact Size

While the BF-16 is big on performance, its compact design allows for easy placement just about anywhere. This small footprint makes it possible to start a business even in environments with limited space.

Starter Price

Offering high print quality and productivity at an attractive price, it provides exceptional value for both new and existing businesses wishing to grow. Affordable ink prices and a new head control system that optimizes ink ejection result in low running costs.

Professional Quality

The BF-16 makes it easy for anyone to produce high-quality output. It uses the same high-definition printheads and inks found in printers used by seasoned professionals. Not only does the BF-16 offer excellent color reproduction and photographic quality, but it also renders tiny type and fine details with precision. Plus, with its White and Gloss specialty inks, you can create premium items with stunning dimensional and textural effects.

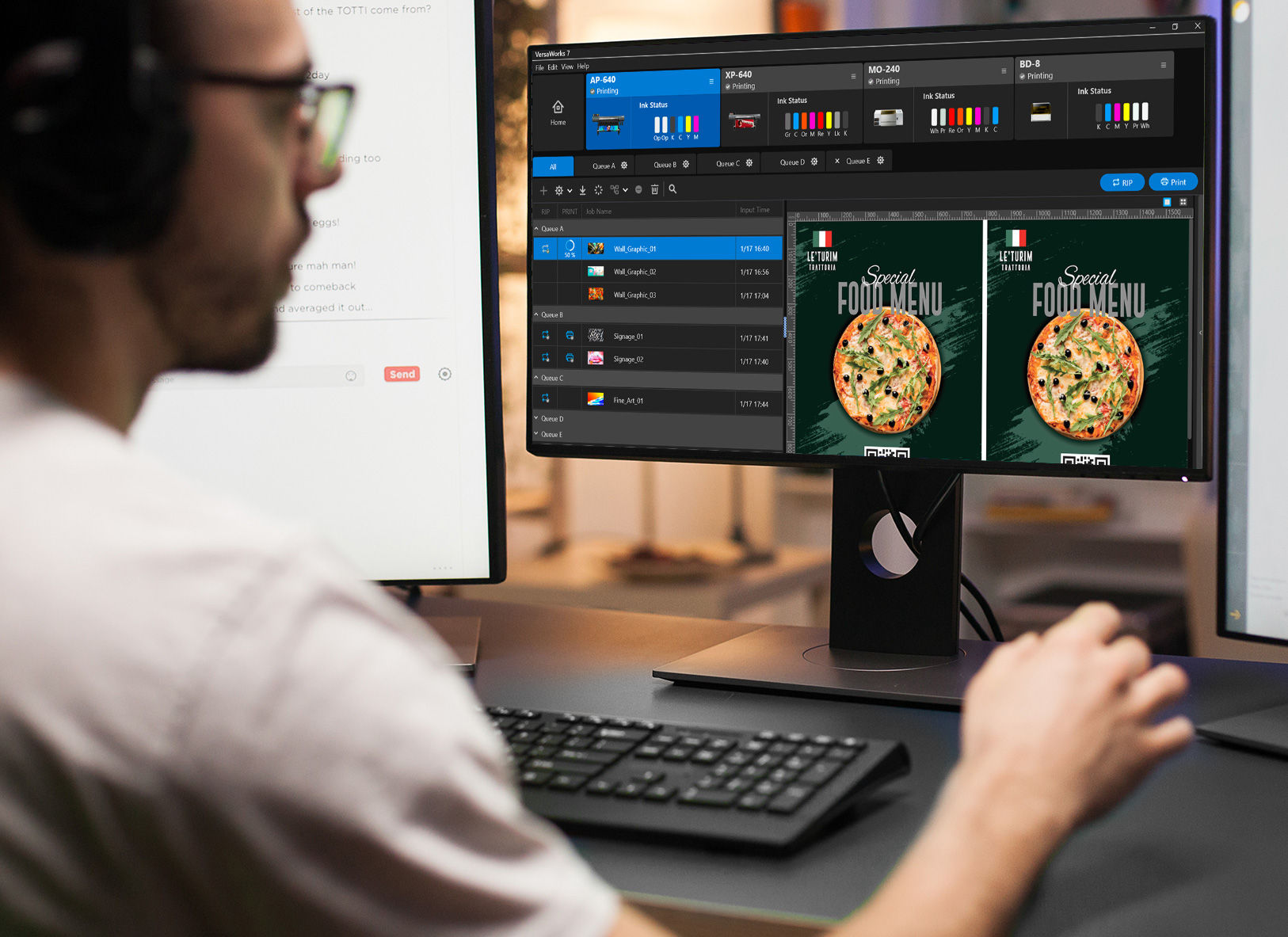

Included VersaWorks 7 RIP Software

For users looking for even greater control over output settings and capabilities, the BF-16 printer comes with VersaWorks 7 RIP software. Easy to use and powerful, it offers features and tools that optimize quality and streamline processes for the print, ink, and media. Special color plates for white and gloss are automatically generated with a single button. VersaWorks also comes with built-in color management tools to make reproducing specific colors easier than ever.

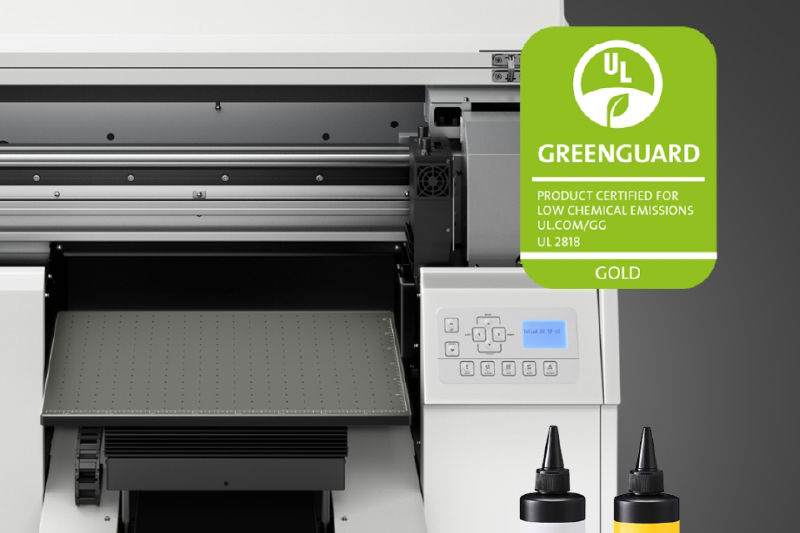

GREENGUARD Gold Certified D-UAB Ink

Specially formulated, wide-gamut D-UAB inks, made exclusively for use with the BF-16, image beautifully, dry instantly, and adhere well on a wide variety of materials. These high-quality inks also have GREENGUARD Gold certification – the world’s most stringent and comprehensive standard for low emissions of volatile organic compounds (VOCs) into indoor air.

Discover Your Profit-Making Potential
Get started today with the perfect VersaSTUDIO UV desktop printer for your business.

Print Area
(WxD)

Max. Thickness
of Printable Objects

Ink Set

Units Per Hour*
(Phone Case)

Units Per Hour*
(A5 Notebook)

Product Size
(WxDxH)

RIP Software

Design Software

Connected Service

Rotary Printing

Fume Extractor

Safety

A5
(210 mm x 148 mm)

102 mm

CMYKWhGl
CMYKWhPr

768 x 586 x 580 mm

^**

Built-in

Full-Cover Design

A3
(420 mm x 297 mm)

90 mm

CMYKWhGl

180

963 x 908 x 592 mm

–

Requires UV protection glasses

*Numbers shown are estimates based on averages only and will vary by task requirements.

**Optional accessory.

Expand Your Creative Possibilities

The VersaSTUDIO product family includes a range of affordable, intuitive desktop digital imaging devices that make it easy for anyone to produce what was previously achievable only by a limited number of professionals. VersaSTUDIO expands creative possibilities, so users can challenge the ordinary, start a business, expand their services, or simply learn digital manufacturing.

LEARN MORE

Roland DGA’s Industry-Leading Warranty and Support

The BF-16 is backed by Roland DGA's unmatched customer service, support and a one-year warranty*.

For more information on warranties, click here.

*Registration within 60 days of purchase and exclusive, continuous use of Roland DGA approved inks is required to qualify for warranty coverage.

More Information

Expand All | Collapse All

Datasheet

Download Your BF-16 Datasheet

Get your digital guide to all the features, applications, benefits and specifications of the Desktop Printer/Cutter.

Download Datasheet

Specifications

VersaSTUDIO BF-16

		BF-16
Printing Method		Piezo ink-jet method
Maximum objects to be printed on	Width	Max. 430 mm (16.9 in.)
	Length	Max. 340 mm (13.3 in.)
	Thickness	Max. 90 mm (3.5 in.)
	Weight	Max. 5 kg (11.0 lb.)
Maximum printing width/printing length		Max. 420 mm × 297 mm (16.5 in. × 11.6 in.)
Ink	Type	D-UAB (220 ml bottle)
Ink	Colors	CMYK Wh Gl
Ink-curing unit		Built-in UV-LED lamp
Printing resolution (dots per inch)		Max. 1,200 dpi
Connectivity		Ethernet 1000BASE-T for control PC only
Rated input		100 - 240 Va.c. 50/60 Hz 3 A
Power consumption	During operation	Approx. 250 W
Power consumption	During standby	Approx. 60 W
Acoustic noise level	During operation	67 dB (A) or less
Acoustic noise level	During standby	50 dB (A) or less
Dimensions (Width x Depth x Height)		964 mm × 908 mm × 592 mm (38.0 in. × 35.8 in. × 23.4 in.)
Weight		90 kg (198.5 lb.)
Environment		Temperature: 22° to 33°C (71.6°F to 91.4 °F), humidity: 30 to 65 %RH (no condensation) Even when the machine is not in use, keep it at a temperature of 22 to 33°C (71.6 to 91.4°F) and a relative humidity of 30 to 65% RH (with no condensation).
Included Items		Power cord, Cleaning liquid, Cleaning Swabs, User's Manual, USB Dongle for Future RIP, Software (VersaWorks), etc.
