BY2-20

LIST PRICE - Starting from:

$7,995

VersaStudio

BY2-20

MSRP

$7,995 US*

Request a Call

* U.S. only. For Canada, Latin America and Caribbean pricing, please contact an Authorized Roland DGA Dealer in your area.

The VersaStudio BY2-20 is a compact direct-to-film apparel decoration solution designed to deliver the consistent output, dependable operation, and improved production stability that DTF businesses rely on. It features dual white ink channels, optimized ink delivery, advanced temperature management, improved filtration, and other system enhancements that work together to provide reliable, high quality performance.

As part of a complete Roland DG desktop DTF system that integrates printer, software, ink, film, and powder, the BY2-20 enables smooth workflows, accurate file preparation, and consistent results across a wide range of applications.

HIGH-QUALITY
OUTPUT

Print sharp, vibrant graphics with strong white density and consistent, repeatable results every time.

STREAMLINED
DESIGN-TO-PRINT

Included Roland DG software tools support accurate artwork design, print preparation and output.

RELIABLE
PRODUCTION

Stable performance and controlled output support dependable, uninterrupted production every day.

FLEXIBLE
APPLICATIONS

Produce transfers for cotton, polyester and more across a wide range of products and applications.

Expand your product offerings

Produce custom graphics for T-shirts, sportswear, bags and more, supporting a wide range of everyday apparel jobs. The BY2-20 enables short runs, one-offs and varied designs, making it suitable for on-demand production and small-batch work. Alongside DTF printing, the BY2-20 also supports standalone cutting and hybrid DTF/HTV workflows for graphics, lettering and apparel applications.

VersaStudio BY2-20 DTF Printer

The VersaStudio BY2-20 is a complete DTF solution for apparel decoration. By working within a defined DTF process, it helps maintain accurate file preparation, stable printing, and consistent results across a wide range of applications.

  • Compact 20" direct-to-film printer - for apparel, accessories and textile decoration
  • Dual white ink configuration - with S-PG2 CMYK + White inks supports stable DTF production.
  • Complete solution - with Roland DG DTF Film, S-Powder, Connect Designer and VersaWorks 7
  • Supports standalone cutting - for HTV graphics, lettering, numbering and specialty media applications

Consistent, high-quality output

Produce sharp, detailed graphics with accurate color, strong white coverage and reliable wash durability. Controlled ink laydown and S-PG2 inks help maintain clarity across very thin lines, small text and intricate details.

The dual white ink system, with 500 ml cartridges, supports consistent output across longer runs. This helps maintain detail and overall print quality from the first job through to ongoing production.

Reliable production

Engineered for reliable, efficient DTF production, the BY2-20 maintains stable output during continuous operation with controlled ink delivery and consistent printhead performance. Refined print stability helps reduce variation and supports consistent results across longer runs, while also improving workflow efficiency and reducing operating costs.

Continuous production support enables steady operation with clear status visibility throughout each job. Automated maintenance functions help keep the printer ready for output while minimizing downtime, interruptions, and rework.

Streamlined workflow

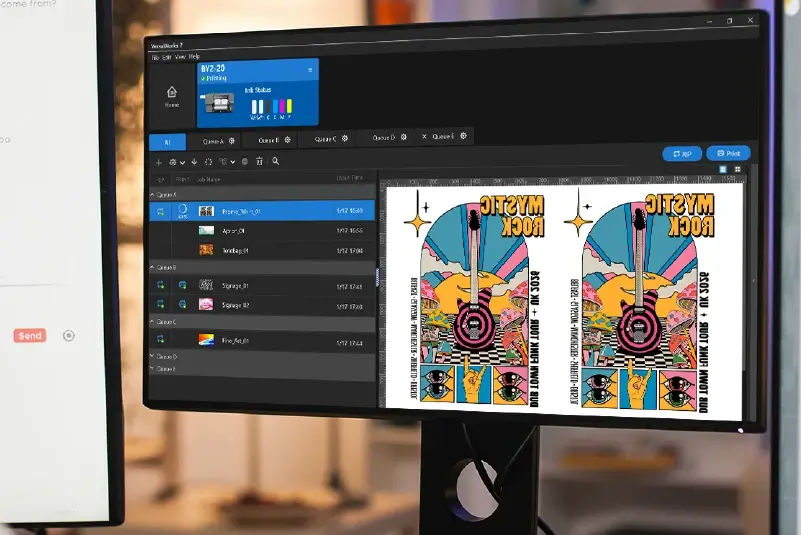

The BY2 combines design, preparation and output within a connected DTF workflow. Roland DG Connect Designer and VersaWorks 7 support accurate file setup, including white layer generation and transparent data handling, helping reduce errors before printing.

Simplified controls and utility software keep operation clear, while automated media adjustment supports accurate alignment and reduces skew during printing.

$name

Understanding the DTF process

DTF production follows a structured sequence from print data preparation to final transfer. Each stage plays a role in achieving consistent, reliable results across different materials and applications.

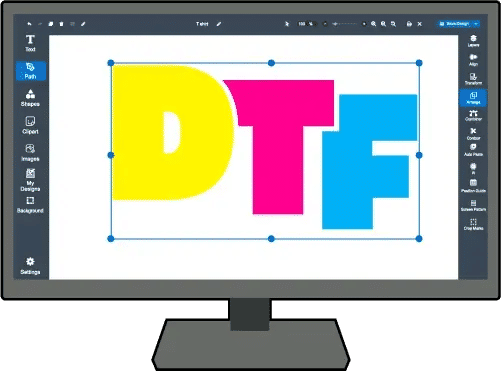

Step 1: Prepare print data

1: Prepare print data

Prepare print data by adding a white base layer to the CMYK artwork using Roland DG Connect Designer or VersaWorks. These included tools support accurate file setup, helping ensure correct structure before moving into print production.

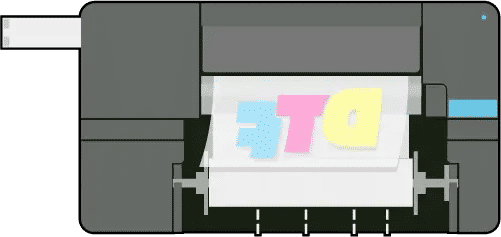

Step 2: Print to film

2: Print to film

Print the design onto Roland DG DTF Film using S-PG2 CMYK and white inks. The image is applied to the film in reverse, then moves directly to powder application while the ink is still wet, supporting an efficient DTF workflow.

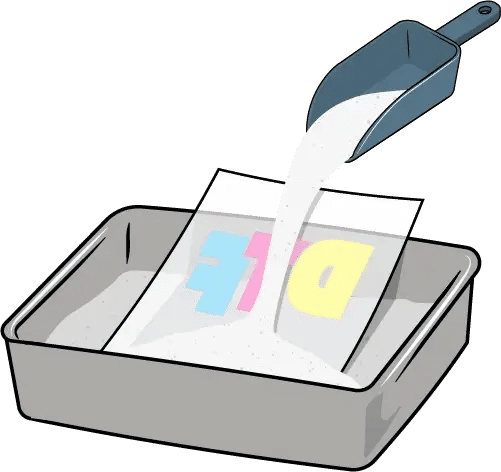

Step 3: Apply powder

3: Apply powder

Apply Roland DG S-Powder to the still-wet ink, then remove any excess. This can be done by hand or with a compatible shaker unit integrated into the workflow, supporting consistent coverage across the full printed surface.

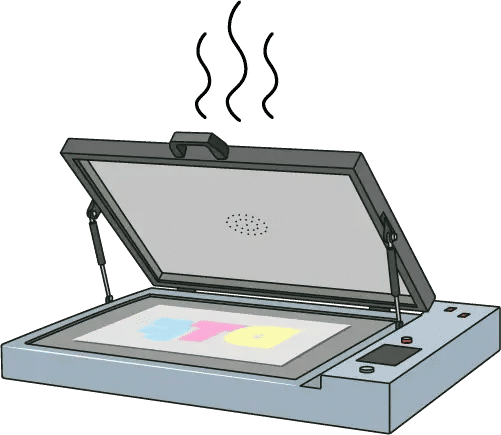

Step 4: Cure the powder

4: Cure the powder

Melt and cure the powder under controlled temperature and time conditions. An oven or shaker unit with exhaust and heat-retention functions is recommended to support even curing and stable transfer performance.

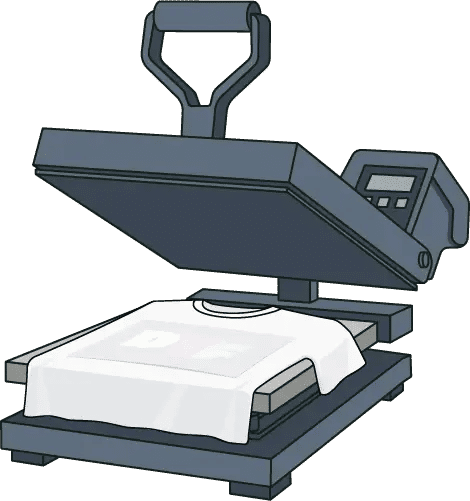

Step 5: Transfer with heat and pressure

5: Transfer with heat and pressure

Apply the cured film to fabric using a heat press at the recommended temperature and pressure. A flatbed heat press is recommended, followed by pre-press, transfer press and final press stages to improve durability and overall finish.

Included DTF workflow software

Included workflow software supports the full DTF production process, from artwork preparation and print setup through to output management and device monitoring. Together, these tools help maintain structured production, consistent results and stable day-to-day operation.

$name

VersaSTUDIO
VersaSTUDIO

Expand Your Creative Possibilities

The VersaStudio product family includes a range of affordable, intuitive desktop digital imaging devices that make it easy for anyone to produce what was previously achievable only by a limited number of professionals. VersaStudio expands creative possibilities, so users can challenge the ordinary, start a business, expand their services, or simply learn digital manufacturing.
Learn More
1 year warranty
1 year warranty

Roland DGA’s Industry-Leading Warranty and Support

The BY2-20 is backed by Roland DGA's unmatched customer service, support and a one-year warranty*.

For additional peace of mind, Roland DGA offers comprehensive Service Contracts to extend your warranty. Purchase your Extended Service Contract at the Roland DGA Marketplace. For more information on warranties, click here.

*Registration within 60 days of purchase and exclusive, continuous use of Roland DGA approved inks is required to qualify for warranty coverage.

Additional information

Expandir Todo | Desplegar Todo

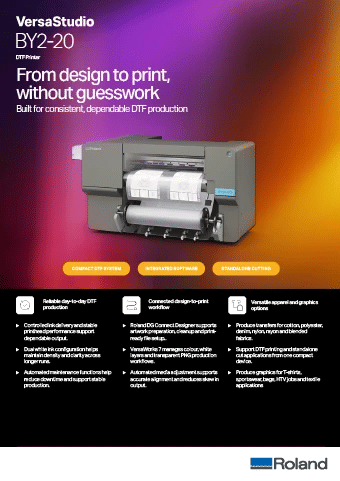

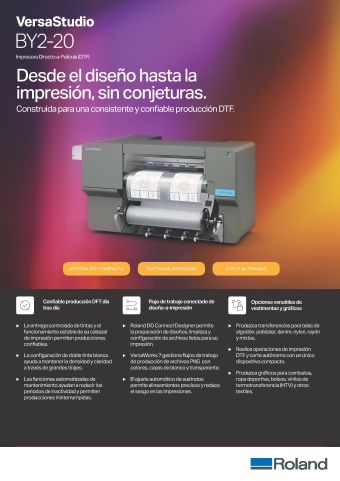

VersaStudio BY2-20 Brochure Thumbnail

Download your BY2-20 datasheet

Download a quick overview of the VersaStudio BY2-20, including key features, software tools and technical specifications.

Download datasheet

Model: BY2-20
Printing method Piezo ink-jet method
Media Width 5.91 to 20.27 in. (150 to 515 mm)
Thickness Max. 39.3 mil (1.0 mm) with liner, for printing
Max. 15.7 mil (0.4 mm) with liner and 8.6 mil (0.22 mm) without liner, for cutting
Roll outer diameter Max. 5.9 in. (150 mm)
Roll weight Max. 13.2 lb. (6 kg)
Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing/cutting width (*1) Max. 18.89 in. (480 mm)
Ink Type S-PG2 INK 220 ml or 500 ml cartridge
Colors Five colors (cyan, magenta, yellow, black, and white[×2])
Printing resolution (dots per inch) Max. 1,440 dpi
Cutting speed 0.4 to 5.9 in./sec (10 to 150 mm/sec)
Blade force (*2) 30 to 500 gf
Blade Type Roland DG CAMM-1 series blade
Offset 0.0 to 59 mil (0.000 to 1.500 mm)
Software resolution (when cutting) 0.98 mil/step (0.025 mm/step)
Media heating system (*3) Print heater set temperature 86°F to 95°F (30°C to 35°C)
Dryer set temperature: 86°F to 100.4°F (30°C to 38°C)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Rated input 100-240 VAC, 50/60 Hz, 2.1 A
Power consumption During operation Approx. 185 W
Sleep mode Approx. 32 W
Acoustic noise level During operation 62 dB (A) or less
During standby 60 dB (A) or less
Dimensions (Width x Depth x Height) 42.09 in. × 30.99 in. × 24.49 in. (1,069 mm × 787 mm × 622 mm)
Weight 145.5 lb. (66 kg)
Environment During operation Temperature: 68 to 82.4°F (20 to 28°C),
Humidity: 40 to 60%RH (no condensation)
Not operating Temperature: 41 to 104°F (5 to 40°C),
Humidity: 20 to 80%RH (no condensation)
Included items Power cord, media holders, replacement blade for separating knife, User's Manual,
Software (VersaWorks, Roland DG Connect), etc.
  1. *1 The length of printing or cutting is subject to the limitations of the program.
  2. *2 • 500 gf is the maximum instantaneous blade force.
  3. • The blade force must be adjusted according to details such as the media thickness.
  4. *3 • Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
  5. • Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
