Brillante Calidad, Asombrosa Velocidad



Ahora con nuevas tintas D-EA2 para una calidad DGXPRESS® a la mitad del costo.

High-Speed Print Solutions

Image of an DGXPRESS ER-642 model
ER-642
Eco-Solvent Printer
Size
64"
Available ink
CMYK x2
500 ml
High-Performance Features
High Productivity (Max: 46.8 m2/h)
Take-up Unit Included
Dryer Unit *
User-friendly Operation
* Optional Extra
Image of a DGXPRESS ER-641 model
ER-641
Eco-Solvent Printer
Size
64"
Available ink
CMYK
500 ml
Professional Features
Max: 25.5 m2/h
Low Investment
Take-up Unit Included Dryer Unit *
User-friendly Operation
* Optional Extra

Professional and Fast Digital Print

With enhanced speed and Roland DG quality, you can produce a huge range of print products in record times.

ugpos4
ugwindowgraphics3

Everything You Need to Succeed

DGXPRESS Printer

Produce work quickly and reliably with DGXPRESS print hardware.

VersaWorks 7 RIP

Power your workflow with our most intelligent engine yet.

Premium D-EA2 Ink

Get stunning results every time with economical eco-solvent ink.

Post-Sale Support

Keep your business going with unparalleled support.

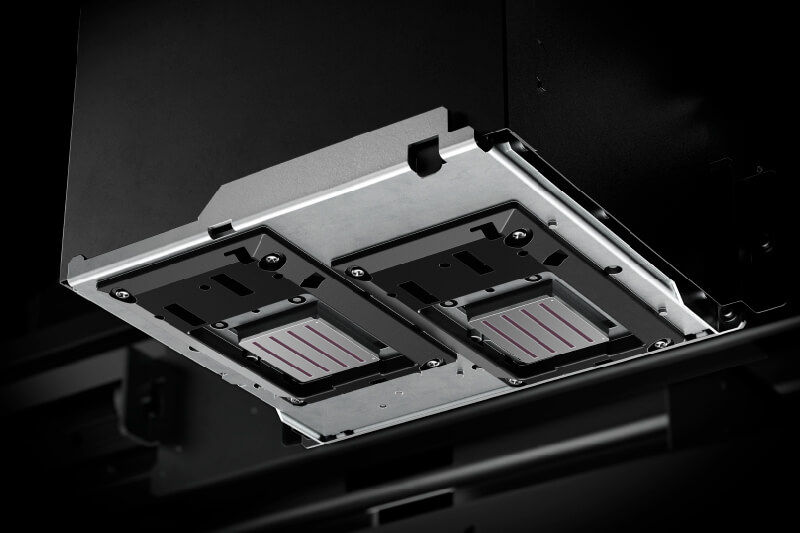

High Speed Print Heads

High Speed Printing

DGXPRESS is the ideal solution for those who need professional, reliable equipment which can exceed the demands of a thriving economy. Every element of the DGXPRESS eco-solvent printing solution is meticulously refined to deliver high-speed output with healthy margins.

The newly developed high-speed data control technology maximizes the performance of the printheads, achieving high-resolution output with fewer passes. With the ER-642 two-pass print set-up, you can achieve speeds up to 46.8 m2/h.

ER-642 Exceptional Quality

Exceptional Quality

Devices in the DGXPRESS range have been precision-engineered to produce prints at high speeds without compromising on print quality.

Features such as VersaWorks' True Rich Color ensure the reproduction of vivid and accurate colors, even with only CMYK inks.

ER Series  intelligent pass mobile

Enhanced Roland Intelligent Pass Control

The newly developed head control technology has been engineered to deliver maximum performance on the ER-642. With Roland Intelligent Pass Control 2.0, prints benefit from smoother gradations and finer detail between passes, reducing banding even at high speeds. This marks a significant step forward in achieving exceptional print quality.

High Performance Ink

Using the latest D-EA2 inks for high-performance and economical printing, you can get maximum speed with dual-CMYK. The cartridges are also paper-based to reduce environmental impact.

D-EA2 ink running cost comparison

New high efficiency CMYK D-EA2 ink delivers the same exceptional quality at up to half the running costs compared to the previous ink.



GREENGUARD Certified

GREENGUARD Gold

D-EA Eco-solvent inks are GREENGUARD Gold certified, meaning they meet strict standards of low chemical emissions making them ideal for indoor applications.



DGXPRESS ER-642
High-performance Features

DGXPRESS ER-641
Professional Features

Key Benefits

Great Return on Investment

Affordable and powerful, these products can generate profits and pay for themselves quickly.

Professional Color Management

Match your customers' color with ease thanks to advanced RIP features.

Priced to Suit Your Business

Roland DG digital print solutions are available to fit any budget.

The Roland DG Legacy

Make a safe investment with Roland DG’s world-renowned quality and reliability.

Efficient and Fluid Workflows

Produce your work, your way with flexible job-management features.

Low Running Cost

Long-life print heads and ink-cloggin prevention ensures long life and sustained quality.

Fast Set-up and Ease of Use

Plug in and start working immediately thanks to Roland DG's user-friendly interface.

Included Color Profiles

Access Roland DG's library of ICC profiles and find hundreds of profiles to match your needs.

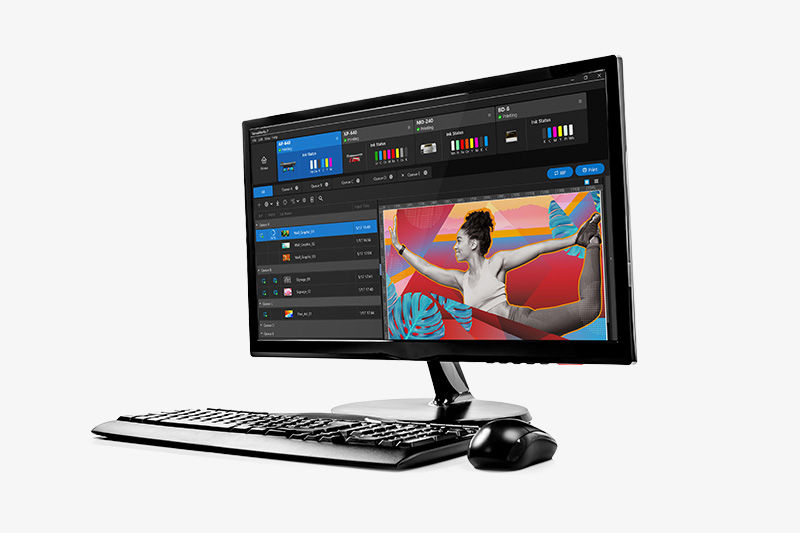

Computer screen showing the VersaWorks 6 Multifunctional RIP Suite software

VersaWorks 7
Multifunctional RIP Suite

Besides its high-speed RIP functionality, VersaWorks 7 RIP includes a wide selection of productivity-boosting features:

  • A range of built-in color-matching functions including color charts, finders and multi-device color calibration.
  • New printing modes contain a newly-developed dither pattern that enhances the power of the ER series.
  • The Job Variation setting quickly identifies the best print settings for your customers' needs.
Computer screen showing the VersaWorks 6 Multifunctional RIP Suite software
The Roland DG Connect app showing on a notebook and a mobile device

Roland DG Connect App
For Everything Creative

Roland DG Connect now offers a more comprehensive suite of tools designed to maximise value and drive business growth. The enhanced platform provides services and resources that enable you to optimise output, connect with a community of professionals, access support, explore new opportunities and much more.

*Some functions are not available with D-EA2 ink.

The Roland DG Connect app showing on a notebook and a mobile device

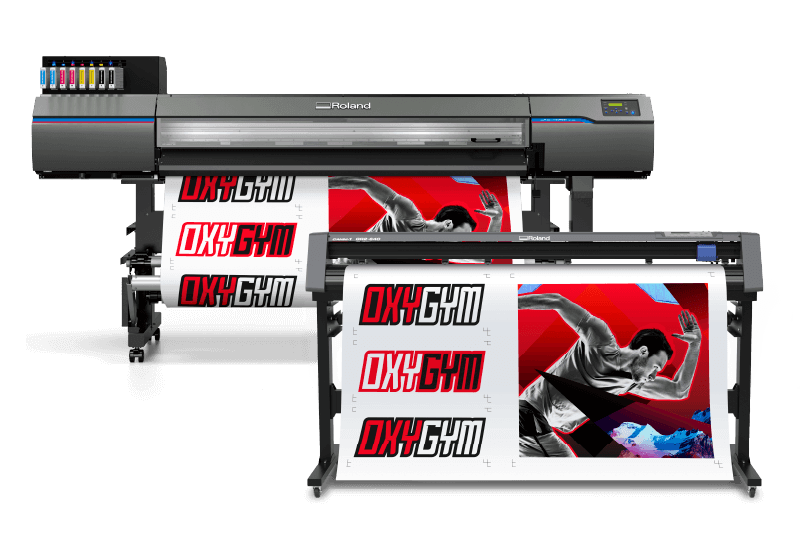

ER And GR

Precise Print-then-cut

VersaWorks 6 RIP software allows users to easily add crop and registration marks to print files.

This makes it possible to precisely cut graphics using a separate plotter, like Roland DG's CAMM-1 GR2 series.

ER And GR
DGXPRESS
DGXPRESS

Your High-Value Choice

With the release of the DGXPRESS range of wide-format printers, you can now produce professional quality prints at an attractive price.

2 Year Trouble-Free Warranty
2 Year Trouble-Free Warranty

Why Choose Roland DG?

Roland DG has provided industry professionals with the highest quality products for more than 40 years, backed by unmatched customer service and support. For even greater peace of mind, every ER Series device running D-EA ink is supplied with a Two-Year Trouble-Free Warranty.*

* Registration within 60 days of purchase and exclusive, continuous use of Roland DG approved inks is required to qualify for the second year of warranty coverage. Two-Year Warranty only applies to machines running D-EA ink. Machines running D-EA2 ink are covered for 12 months under a One-Year Warranty.

Additional Information

Expandir Todo | Desplegar Todo
DGXPRESS ER-641
Printing method Piezo ink-jet method
Media Width 10.2 to 64 in. (259 to 1,625 mm)
Thickness Max. 39.3 mil (1.0 mm) with liner
Roll outer diameter Max. 9.8 in. (250 mm)
Roll weight Max. 99 lb. (45 kg)
Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing width 1 Max. 63.5 in. (1,615 mm)
Ink
Type Eco-Solvent Ink (D-EA2) 500 ml cartridge
Colors Four colors (Cyan, Magenta, Yellow, and Black)
Printing resolution (dots per inch) Max. 1,200 dpi
Media heating system 2 Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving function Automatic sleep feature
Power requirements 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A
Power consumption During operation Approx. 1,180 W
Sleep mode Approx. 50 W
Acoustic noise level During operation 66 dB (A) or less
During standby 53 dB (A) or less
Dimensions (width x depth x height) 113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm)
Weight 415 lb. (188 kg)
Environment During operation 3 Temperature : 68 to 89.6 °F (20 to 32 °C) , humidity:35 to 80 % RH (no condensation)
Not operating Temperature : 41 to 104 °F (5 to 40 °C) , humidity:20 to 80 % RH (no condensation)
Included items Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.

Specifications, designs and dimensions listed may be subject to change without notice
1The length of printing is subject to the limitations of the application software.
2
  • Warm-up is required after power up. This may require 5 to 20 minutes, depending on the operating environment.
  • Depending on the ambient temperature and media width, the preset temperature may fail to be reached.
3Operating environment (Use in an operating environment within this range.)
DGXPRESS ER-642
Printing Method Piezo ink-jet method
Media Width 10.2 to 64 in. (259 to 1,625 mm)
Thickness Max. 39.3 mil (1.0 mm) with liner
Roll outer diameter Max. 9.8 in. (250 mm)
Roll weight Max. 99 lb. (45 kg)
Core diameter 3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing width 1 Max. 63.5 in. (1,615 mm)
Ink
Types Eco-Solvent Ink (D-EA2) 500 ml cartridge
Colors Four colors (Cyan, Magenta, Yellow, and Black)
Printing Resolution (dpi) Max. 1,200 dpi
Media heating system 2 Print heater set temperature: 86 to 113 °F (30 to 45 °C) Dryer set temperature: 86 to 131 °F (30 to 55 °C)
Connectivity Ethernet (100BASE-TX/1000BASE-T, automatic switching)
Power-saving Function Automatic sleep feature
Power Requirements 100-120 / 220-240 Va.c. 50 / 60 Hz 8.9 / 4.5 A
Power Consumption During operation Approx. 1,180 W
Sleep mode Approx. 50 W
Acoustic Noise Level Print with Vacuum 66 dB (A) or less
During Standby 53 dB (A) or less
Dimensions (width x depth x height) 113.7 in. x 29.5 in. x 55.8 in. (2,886 mm × 748 mm × 1,415 mm)
Weight 415 lb. (188 kg)
Environment During operation 3 Temperature : 68 to 89.6 °F (20 to 32 °C) , humidity:35 to 80 % RH (no condensation)
Not operating Temperature : 41 to 104 °F (5 to 40 °C) , humidity:20 to 80 % RH (no condensation)
Included items Dedicated stand, power cord, media take-up unit, media holders, replacement blade for separating knife, cleaning liquid bottle for maintenance, drain bottle, User's Manual, software (VersaWorks, Roland DG Connect), etc.

Download Your ER-642 Datasheet

Get your digital guide to all the features, applications, benefits and specifications of the ER-642.

Download Datasheet

Download Your ER-641 Datasheet

Get your digital guide to all the features, applications, benefits and specifications of the ER-641.

Download Datasheet
