Simply Brilliant

Exceptional dye-sublimation printing performance and value.

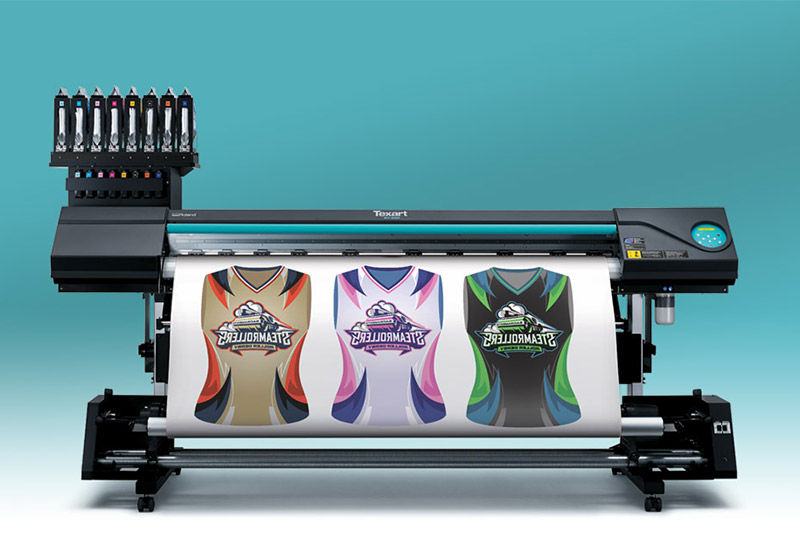

Texart™ RT-640 Dye-Sublimation Transfer Printer

MSRP

$19,995 US

* Promotions valid in North and South America excluding Brazil. Pricing reflects US MSRP. Contact an Authorized Roland DGA Dealer in your area for details.
LEASE PRICE

$420 US*

** For 60 months, OAC
Apply Now

If you're looking to get into dye-sublimated soft-signage, apparel, décor, promotional goods and other highly profitable applications, then the RT-640 is the sublimation printing solution for you. Designed to combine superb quality, productivity and value with brilliantly simple operation, the advanced RT-640 Dye-Sublimation Transfer Printer is simply brilliant.

The Perfect Sublimation Printing Solution

The Texart RT-640 is a state-of-the-art device that fits effortlessly into sublimation printing workflows for productions ranging from fabric banners and branded apparel to promotional items and interior décor. Roland DG’s Texart solution includes the Texart printer, Texart inks, ErgoSoft Roland DG edition RIP software and options for accessories like transfer paper, making it easy for you to get into – or rev up – your sublimation business.

What others have to say.

We have some non-traditional ideas and we work with some super-creative artists. With dye-sub capability, there's a whole myriad of possibilities. Mary Findysz, Photographic Works, Arizona

Brilliantly Simple Production

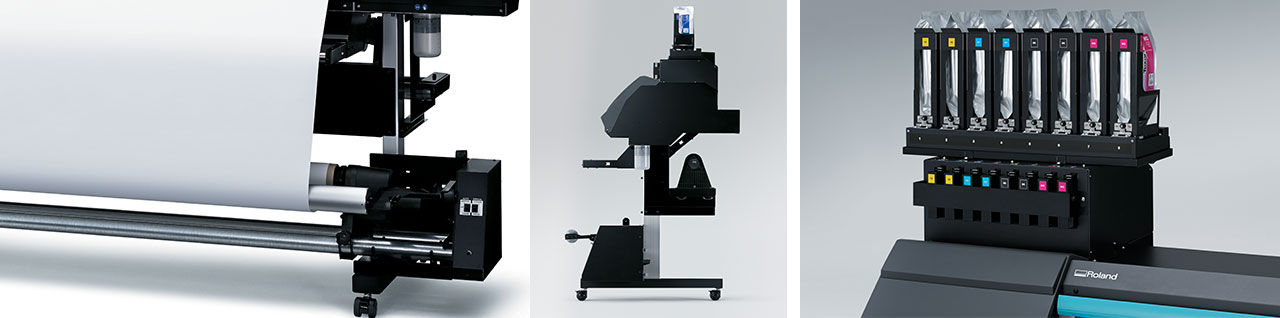

The RT-640 is designed for maximum ease-of-use. An automatic feed adjuster and media take-up system ensure even tensioning and prevent skewing of transfer paper, while a powerful vacuum keeps paper flat for printing. The result is precision details and a precisely wound roll at the take-up reel, ready for heat transferring. An innovative Roland DG Ink Switching System automatically switches to the backup ink pouch when the primary pouch runs out, providing up to 2000ml of ink per color in CMYK mode. Included ErgoSoft sublimation RIP software and Roland DG Printer Assist iPad app make it easy to manage operation.

Brighten up Your Graphics with Texart SBL3 Ink

Achieve vivid colors, smooth gradations and super-sharp images with fast-drying Texart dye-sublimation inks. Specially formulated for Texart dye-sublimation printers, Texart ink delivers dense blacks, a wide color gamut that includes Orange and Violet ink options, and a high dye-concentration that reduces ink-limits without any reduction in color density or vibrancy. Texart SBL3 ink is also available in Fluorescent Pink and Yellow inks that produce hundreds of vivid fluorescent colors and soft pastel shades for fashionable sportswear, decor and eye-catching signs.

Two-year warranty and unmatched reliability.

Roland DG has earned a worldwide reputation for building reliable machines and backing them up with unmatched customer service and technical support. The RT-640 is supplied with a Two-Year Trouble-Free Warranty and proudly displays all international ISO certifications as your confirmation of superior quality.

*Registration within 60 days purchase and continuous exclusive use of Roland DG inks during the ﬁrst two years of ownership are required to qualify for the free second year of limited warranty coverage. See warranty page for details.

Additional Information

Expand All | Collapse All

Specifications

Texart™ RT-640

Printing technology		Piezoelectric inkjet
Media	Width	10.2 to 64 in. (259 to 1,625 mm)
	Thickness	Maximum 39 mil (1.0 mm)
	Roll outer diameter	Maximum 8.3 in. (210 mm)
	Roll weight	Maximum 88 lbs. (40 kg)
	Core diameter ¹	3 in. (76.2 mm) or 2 in. (50.8 mm)
Printing width ²		Maximum 63.6 in. (1,615 mm)
Maximum speed (4-color 360x360 print mode)		522 ft2/hr (48.5 m2/hr)
Ink pouches	Types	Exclusive sublimation ink pouch
	Colors	4-color (CMYK) and 8-color (Choose from CMYK+LcLmOrVi and CMYK+OrViFpFy options) Available colors: cyan, magenta, yellow, black, light cyan, light magenta, orange, violet, fluorescent pink, and fluorescent yellow
Printing resolution (dots per inch)		Maximum 1,440 dpi
Distance accuracy ³		Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater
Connectivity		Ethernet (10BASE-T/100BASE-TX, automatic switching)
Power-saving function		Automatic sleep feature
Power requirements		AC 100 to 240 V ±10%, 1.5 A, 50/60 Hz
Power consumption	During operation	Approx. 140 W
	Sleep mode	Approx. 31 W
Acoustic noise level	During operation	62 dB (A) or less
	During standby	49 dB (A) or less
Dimensions (with stand)		104.4 (W) x 31.3 (D) x 63 (H) in. (2,650 mm (W) x 795 mm (D) x 1,600 mm (H))
Weight (with stand)		353 lbs (160 kg)
Environment	Power on	Temperature: 64.4 to 77^° F (18 to 25^° C), humidity: 35 to 65% RH (non-condensing)
	Power off	Temperature: 59 to 86^° F (15 to 30^° C), humidity: 20 to 80% RH (non-condensing)
Accessories		Exclusive stands, power cord, media clamps, media holder, replace- ment blades for separating knife, User's Manual, etc.

ErgoSoft Roland DG Edition System Requirements

Operating system	Windows® 8/8.1 (32/64-bit); Windows® 7 Ultimate/Professional (32/64-bit); Windows Vista® Ultimate/Business (32/64-bit)
CPU	Quadcore 2.5 GHz or faster recommended
RAM	4 GB or more recommended
Video card and monitor	A resolution of 1,280 × 1,024 or more recommended
Free hard-disk space	40 GB or more recommended
Optical drive	DVD-ROM drive

1.	The media holder of this machine is exclusive use for the media of paper tube (core) inner diameter 3 inches. To use 2 inches media, the optional media flanges are required.
2.	The length of printing is subject to the limitations of the program.
3.	• Media type: Media specified by Roland DG Corp. • Temperature: 77°F (25°C), humidity: 50% • Roll media must be loaded correctly. • Excluding expansion/contraction of the media • All corrections or adjustment function of this machine have been made properly. • Print travel: 1 m

Brochure

Download Your Texart RT-640 Brochure

Get your digital guide to all the features, applications, benefits and specifications of the Dye-Sublimation Transfer Printer.
