MPX-95 Impact Printer with DPM Kit | Roland
Make Your Mark
An easier way to mark tools and instruments.

METAZA MPX-95 Photo Impact Printer with DPM Kit

Affordable and easy-to-operate, the MPX-95 offers the most versatile marking solution for industrial parts marking and UDI medical equipment compliance*. Users of all abilities can add precision data to a wide range of metal equipment.

*By 2020 US FDA regulations for medical equipment labeling and registration will require ALL medical devices and equipment (class I, class II, and class III) to be unique device identification (UDI) compliant.

Request a Call

MPX-95 DPM Kit

Mark on a Wide Range of Hard Materials

A durable diamond-tipped stylus strikes material with high speed and precision to mark fine text and complex data patterns onto:

Stainless steel

Laser Pointer Set-Up

A built-in laser pointer accurately defines center point on workpiece before imprinting. At the touch-of a button, users can set the print position for precise marking every time.

Expand Media Options

The base plate and base unit can be removed to enable imprinting onto much larger medical tools, devices and industrial equipment.

Direct Part Marking Kit Includes:

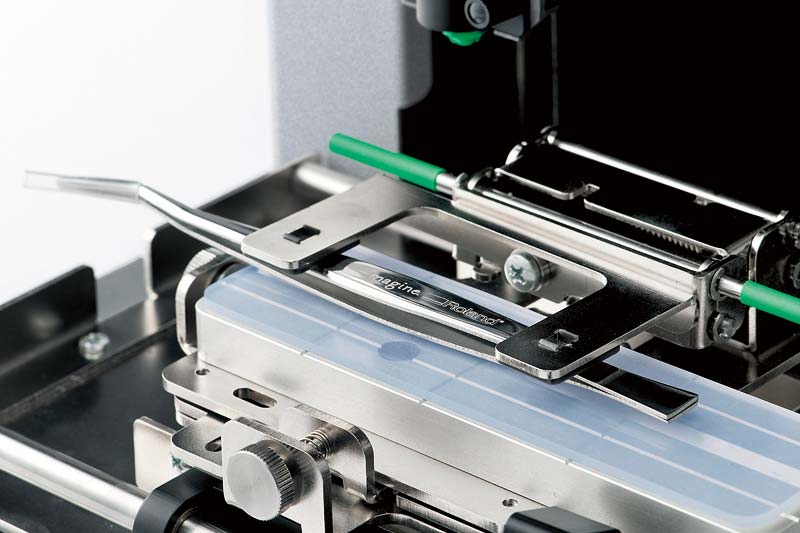

DPM Vise
DPM Vise

DPM Vise

A movable and fully-adjustable vise with multiple tool-holding options can be quickly set-up to hold medical scissors, tools and other items. It's ideal for marking different items with contrasting dimensions in succession.
MPX-95 with Center Vise and Clamp Pins

Center Vise with Clamp Pins

Uniquely position different sized clamp-pins to hold irregular-shaped and cylindrical items for repeat, precise personalization of equipment with the same dimensions.
MPX-95 with Center Vise and Clamp Pins
Head Caps
Head Caps

Head Caps

30 rounded and 10 flat head caps are included in the DPM Kit for use on flat and curved surfaces.
Variable Data Imprinting

Data Imprinting

Imprint up to 26 digits of barcode data inside an area as small as one square millimeter. Users can also automatically apply serial barcodes and security numbers with variable data options.
Variable Data Imprinting
DPM Kit Software

Included METAZA Studio Software

The DPM version of METAZA Studio allows users to apply sequential data to each item in a series, add text, import variable data without having to save a CSV file, and automatically generate 2D symbols for an effortlessly easy solution.

Compact, Quiet and Safe

The MPX-95 runs quietly, cleanly and safely in medical facility and office environments. Because it does not burn or remove material on impact, it generates no odors or debris. No daily maintenance, special power or ventilation is required.
Roland 1 Year Warranty
Roland 1 Year Warranty

Highest Standard of Quality, Reliability and Support

A one-year manufacturer’s warranty and industry-best customer service ensures that your device is always up-and-running.

Roland DG's international ISO certifications are your assurance of our commitment to quality products and service.

Are you located in the United States, Canada, or Latin America?


Additional Information

Expand All | Collapse All

Download Your MPX-95 DPM Brochure

Get your digital guide to all the features, applications, benefits and specifications of the MPX-95 Brochure.

Download MPX-95 DPM Brochure
